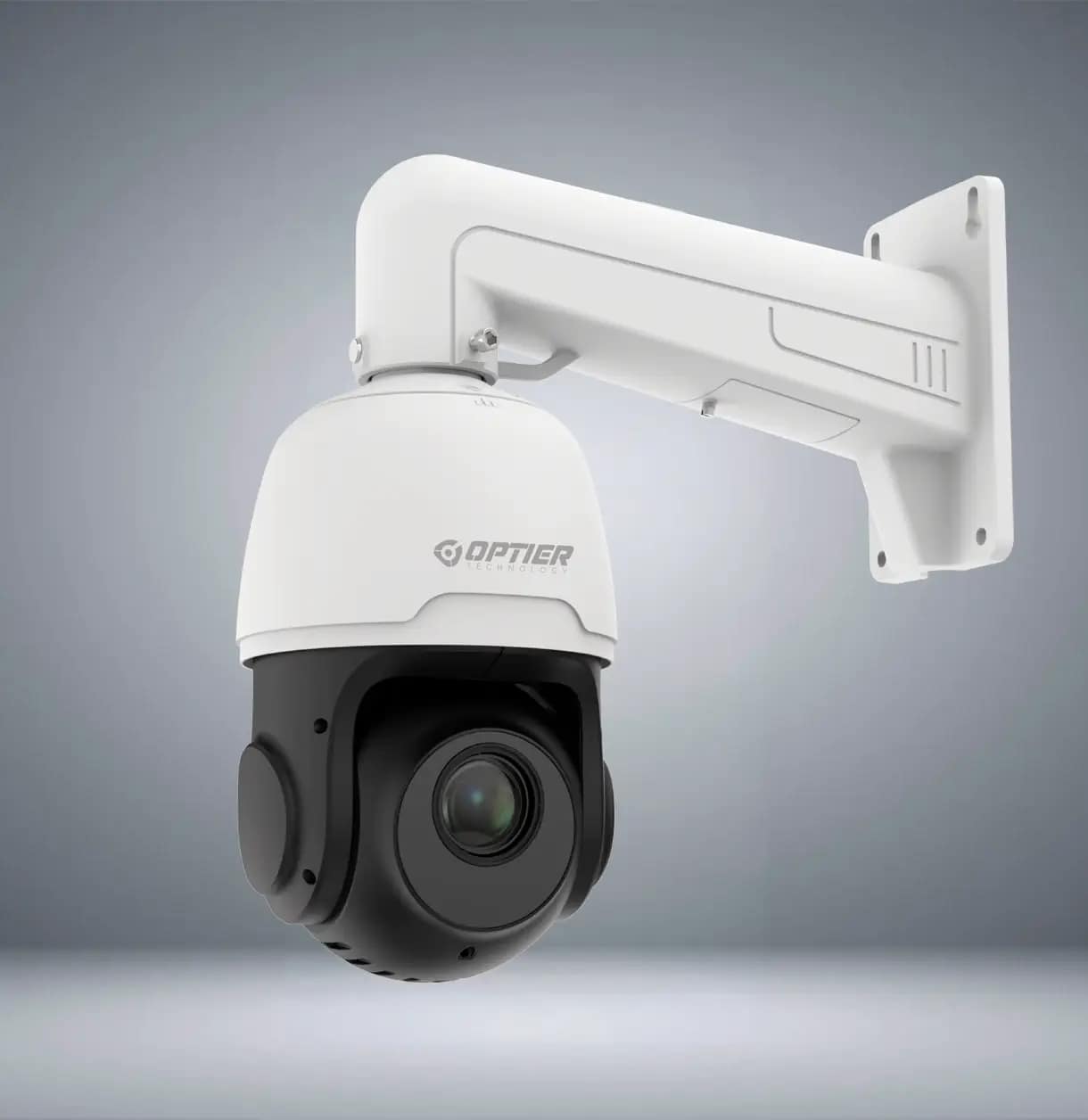

Model : OPT-RY-8MPTZ-25X5125
- 1/2.8″ progressive scan CMOS
- 4K high resolution
- 25x optical zoom, 16x digital zoom
- 120dB WDR
- Up to 100m IR distance
- Auto tracking
- Smart detection and perimeter protection
General
- Power : DC 12V/PoE+, max. 25.2W
- Operating Condition : -30 °C to 60 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- Material : Metal
- Dimension : Ø 160 mm × 270 mm (Ø 6.3″ × 10.6″)
- Weight : Approx. 2.52 kg (5.56lb.)
Camera
- Image Sensor : 1/2.8″ Progressive Scan CMOS
- Max. Resolution : 3480×2160
- Min. Illumination : Color: 0.007 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Speed : 1/5 s to 1/20000 s
- Slow Shutter : Yes
- Day & Night : IR cut filter
- Zoom : 25x optical
Lens & Illuminator
- Focal Length : 5mm to 125mm
- FOV :
- Horizontal field of view: 59.9° to 8.9° (wide-tele)
- Vertical field of view: 34.4° to 4.8° (wide-tele)
- Diagonal field of view:67.1° to 5.1° (wide-tele)
- Aperture : Max. F1.6
- Focus : Auto,manu
- Supplement Light Range : IR Distance: up to 100m
- Supplement Light Type : IR
PTZ
- Movement Range(Pan) : 360°
- Movement Range(Tilt) : -10° to 90° (auto flip)
- Pan Speed : Pan speed: configurable from 0.6° to 80°/s; preset speed: 120°/s
- Tilt Speed : Tilt speed: configurable from 0.6° to 80°/s, preset speed 100°/s
- Presets : 255
- Patrol Scan : 1 Scan
- Pattern Scan : 4 pattern
- Power-Off Memory : Yes
- 3D Positioning : Yes
Video & Audio
- Main Stream :
- 50 Hz: 25fps(3840×2160,3072×1728,2592×1944, 2592×1520, 2304×1296,1920×1080,1280×960,1280×720);
- 60 Hz: 30 fps(3840×2160,3072×1728,2592×1944, 2592×1520, 2304×1296,1920×1080,1280×960,1280×720);
- Sub-Stream :
- 50 Hz: 25 fps (1280×720, 640 × 480, 320×240);
- 60 Hz: 30 fps (1280×720, 640 × 480, 320×240);
- Third Stream :
- 50 Hz: 25 fps (640×480, 320×240);
- 60 Hz: 30 fps (640×480, 320×240)
- Video Compression :
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265+/H.265+/H.264+/H.264/MJPEG
- Third stream: H.265+/H.265/H.264+/H.264
- Video Bit Rate : 16 kbps to 16384 kbps
- H.264 Type : Baseline Profile/Main Profile/High Profile
- H.265 Type : Main Profile
- Audio Compression : G.711a/G.711u
Network
- Protocols : IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, TCP/IP, UDP, DHCP, PPPoE,
- API : Onvif ( Profile S, Profile G, Profile T),Http API
- Simultaneous : Live View Up to 14 channels
- User/Host : 15 User
- Security : Password protection, complicated password, HTTPS encryption, IP address filter,control timeout settings
- Client : VMS
- Web Browser :
- IE10/11
- Safari V12.1 above
- Firefox V.52 above
- Google chrome V.57 above
- Edge V.79 above
- Day/Night Switch : Day, Night, Auto, Schedule
- Image Enhancement : BLC, HLC, 3D DNR
- Wide Dynamic Range (WDR) : 120dB
- Image Settings : Saturation, brightness, contrast, sharpness, Hue and white balance adjustable by client software or web browser
- Privacy : 4 privacy masks
Interface
- Ethernet Interface : 1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board Storage : Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256GB
- Alarm : 1 inputs, 1 output
- Audio : 1 inputs, 1 output
- Reset : Yes
Event
- Basic Event : Motion detection, alarm input and output
- Deep Learning Function :
- Face Recognition
- Human & Vehicle Detection
- Perimeter Intrusion Detection
- Line Crossing Detection
- Stationary Object Detection
- Crossing Counting
- Heat Map
- Crowd Density Detection
- Queue Length Detection
- License Plate Detection
- Rare Sound
- Intrusion
- Region Entrance
- Region Exiting
- Smart Tracking : auto-tracking
- Alarm Linkage : Upload to FTP, send email, trigger alarm output, trigger recording
