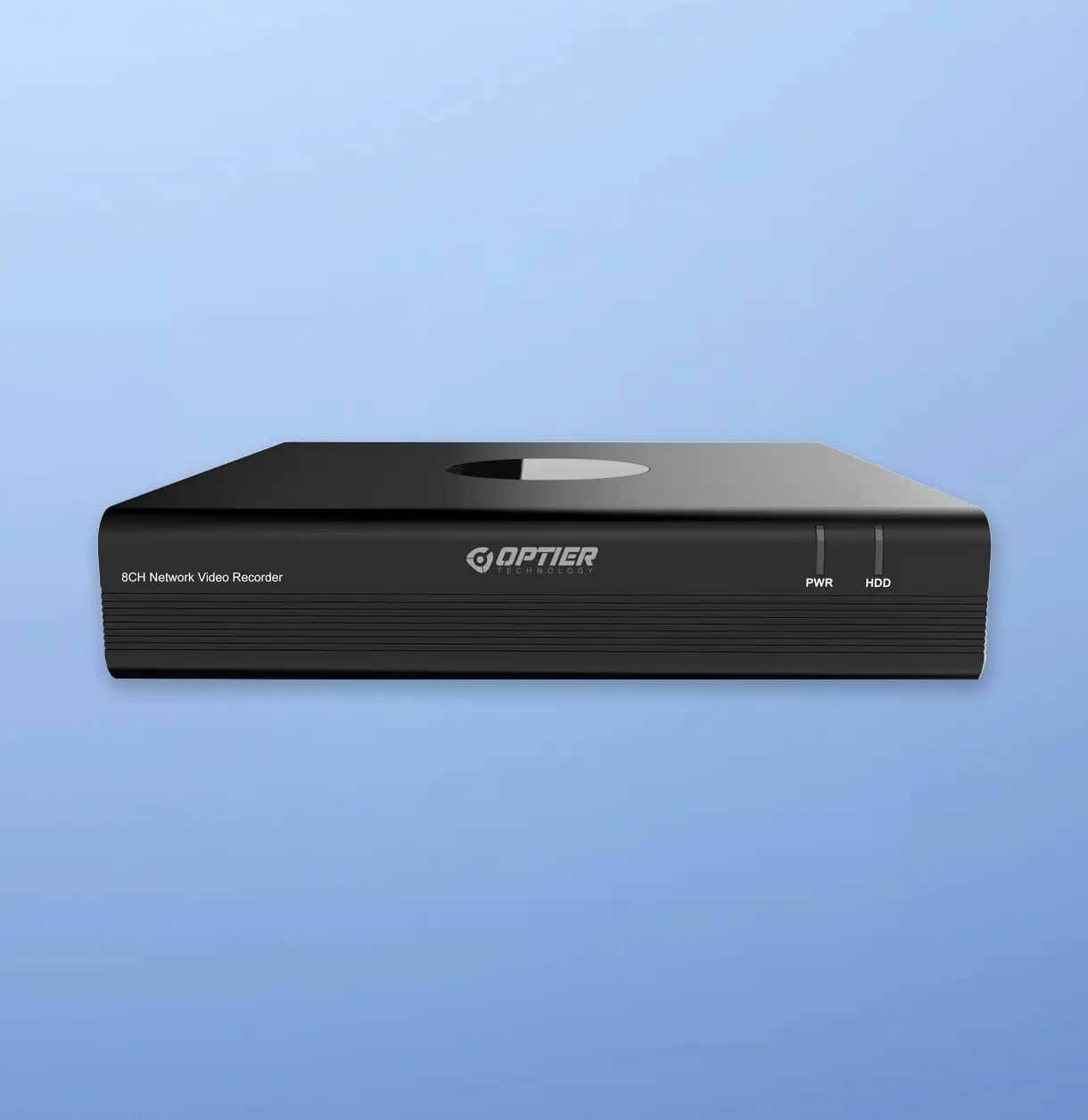

Model :RS-N8708AS-P
- Maximum support for 8 channels of 4K IP camera input.
- H.265 encoding and decoding.
- Supports standard ONVIF protocol.
- With 1 internal HDD drive bay.
- Allows remote access from mobile devices and computers.
General
- OSD Language : English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish
- Dimension (WxDxH) : 230×215×47mm
- Weight : ≤ 0.62 kg (without HDD, 1.4 lb)
- Input Voltage / Current : DC48V / 1.36A
- Power consumption (excluding hard disk) : 4W
- Operating Temperature : -10°C ~ +50°C (14°F ~ 122°F)
- Humidity : Less than 90% RH
Video
- Inputs Bandwidth : 64Mbps
- Out Bandwidth : 80Mbps
- 4K : 30fps
- 4MP : 60fps
- 2MP : 120fps
- Single channel up to 4K
- Fast forward / backward : 2x, 4x, 8x, 16x
- Slow forward : 1/2x, 1/4x, 1/8x, 1/16x
Web / Browser Support
- IE10/11
- Safari V12.1 above
- Firefox V.52 above
- Google chrome V.57 above
- Edge V.79 above
Protocols
- Audio : G.711A / G.711U
- Video : H.264 / H.265
- RTSP, SNMP, DDNS, HTTP/HTTPS, TCP, UDP, FTP, MQTT, HLS, SMTP, UPNP
Recording & Perfomance
- Recording Compression
- Speed Performance
- API : RS API / Onvif (Profile S/G/T)
- Playback function on Network
- Recording Resolution : 8MP / 5MP / 4MP / 3MP / 1080p / 720p
- Playback : 1080P 120fps
- Max : 4CH
Interface
- HDMI : 1 (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440(2K), 3840×2160(4K)/EDID)
- VGA : 1 (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080)
- Ethernet : 1 RJ45 10/100 Base-T
- PoE : 8×RJ45, 802.3at/af
Ports (Rear Panel)
- 1 : VGA
- 2 : HDMI
- 3 : USB
- 4 : LAN Port
- 5 : PoE Port
- 6 : Power
