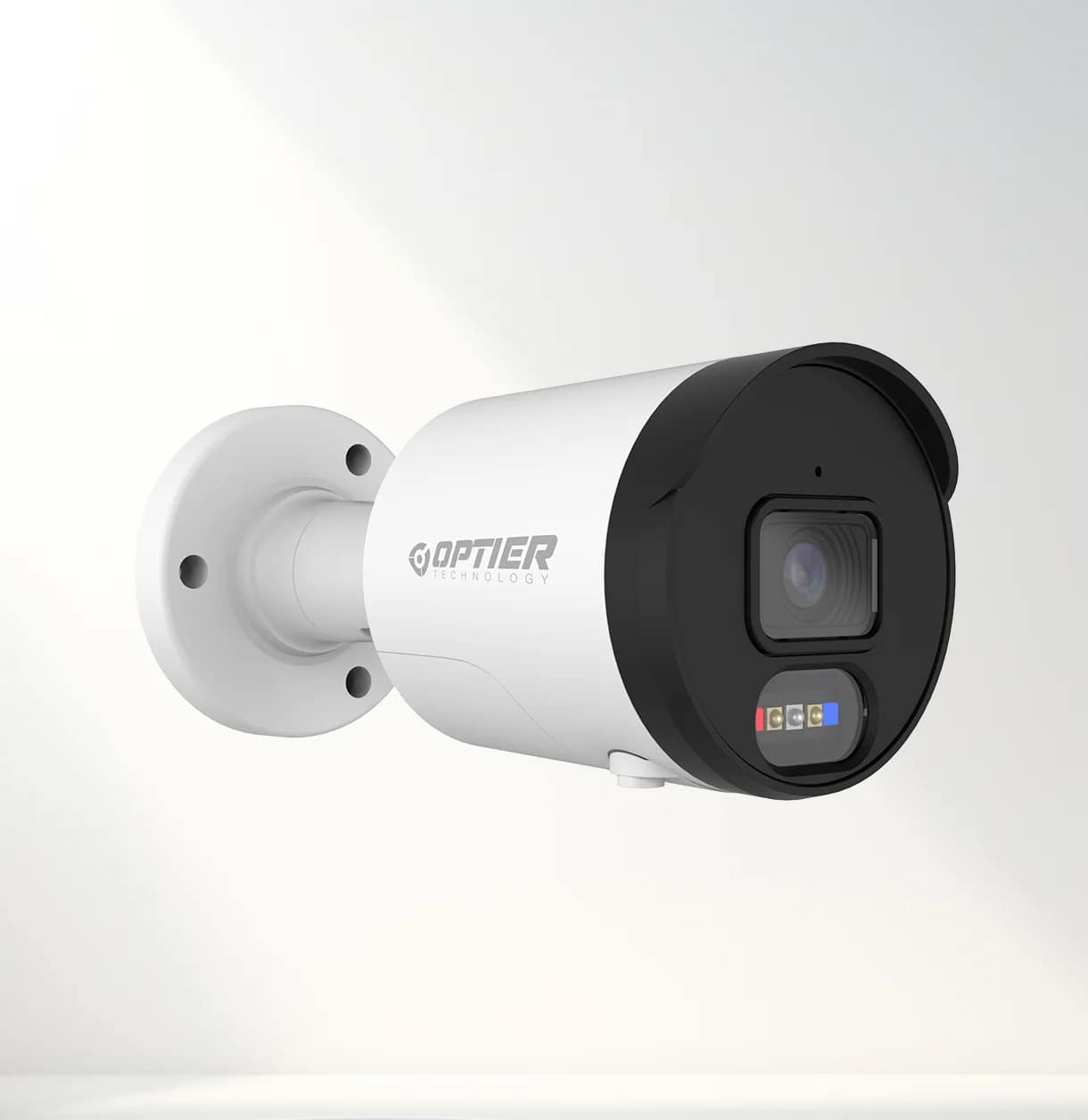

Model : OPT-RY-2MB-3625C
Optier AI 2 Megapixel High quality imaging with progressive CMOS WDR Real time Support SMART H.265/H.264 coding Hybrid Bullet network camera with Built in Speaker
Video
- Imaging Device: 1/2.8″
- Effective Pixels: 2MP 1920(H)×1080(V)
- Scanning System: Progressive CMOS
- Min. Illumination: Color 0.0009lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON
Lens
- Focal Length (Zoom Ratio): 3.6mm
- Max. Aperture Ratio: F No. 1.0
- Angular Field of View: Horizontal: 87°, Vertical:44°, Diagonal: 104°
- Min. Object Distance: 2m
- Lens Type: Fixed(M12)
Operational
- IR LED: 1
- WarmLight: On/Off
- Red Blue Light: IR cut filter with auto switc（h Day/Night/Auto/Image/Schedule）
- IR Viewable Length: Off/On (5 Zone)
- WarmLight Viewable Length: WDR
- Type of complementary light: 3D DNR
- Motion Detection: Off/On (8 Level)
- Wide Dynamic Range: Off/On (4 Zone, Rectangle)
- Digital Noise Reduction: Auto
- Image Setting: Auto/Manual
- White Balance: 1/5 ~ 1/20000s
- Electronic Shutter Speed: Micro SD slot, up to 256GB
- On-Board Storage: NA
- Alarm: Built-in microphone
- Audio: Built-in microphone&Speaker
- Custom Voice: Yes
- Hardware Reset: Yes
- Smart Feature: Face Recognition, Pedestrian & Vehicle ,Perimeter Intrusion , Line Crossing , Object Detection, Crossing Counting, Heat Map, Crowd Density ,Queue Length , License Plate ，Rare Sound，Intrusion，Region Entrance，Region Exiting
Network
- Ethernet: RJ45(10/100BASE-T)
- Video Compression Format: H.265/H.264
Video Compression - Resolution:
Main Stream 1080P(1920×1080),960P(1280×960),720P(1280×720)
Sub Stream 720P(1280×720),VGA(640×480),QVGA(320×240)
Mobile Stream VGA(640×480), QVGA（320×240） - Video Quality Adjustment: 256Kbps ~ 8Mbps
- Bitrate control method: CBR/VBR
- IP: IPv6
- Streaming Capability: Triple-Stream(Main/Sub/Moile)
- Protocol: TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
- Web Browser: IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
- Security: IP address filter;complicated password;Authenticated username and password
Electrical & Mechanical
- Input Voltage / Current: D12V/POE(IEEE802.3af)
- Power Consumption: DC12V ：max 5.7 W； POE（48V): max 6.9W
- Material: Metal
- Dimensions: (HxWxD) 152.3*70.1mm
