Model : OPT-VAL-2D3625-CRP

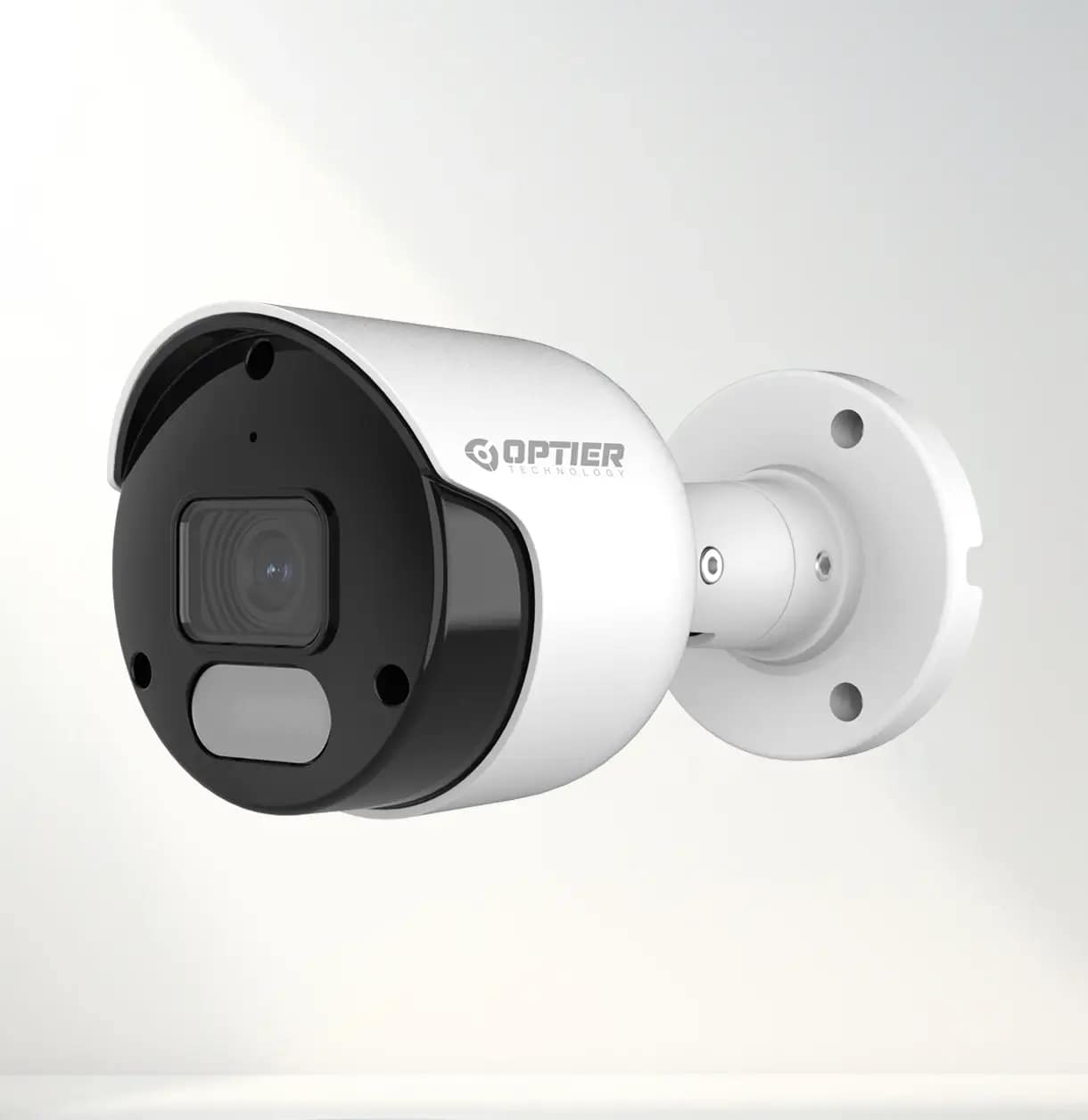

Optier Value AI 2 Megapixel High quality imaging with progressive CMOS DWDR, Real time Support SMART H.265/H.264 coding Hybrid Bullet network camera
Video
- Imaging Device : 1/3″
- Effective Pixels : 2MP 1920(H)×1080(V)
- Scanning System : Progressive CMOS
- Min. Illumination : Color 0.008lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON
Lens
- Focal Length (Zoom Ratio) : 2.8 mm
- Max. Aperture Ratio : F No. 2.0
- Angular Field of View : Horizontal:97° , Vertical:53°, Diagonal: 115°
- Min. Object Distance : 1.8m
- Lens Type : Fixed(M12)
Operational
- IR LED : 1
- WarmLight : 1
- IR Viewable Length : Up to 25m
- WarmLight Viewable Length : Up to 20m
- Type of complementary light : Default warm light, switchable infrared light
- Motion Detection : Off/On (8 Level)
- Wide Dynamic Range : DWDR
- Digital Noise Reduction : 3D DNR
- Image Setting : Full Color Mode/Day&Night Mode/Smart IIIumination
- White Balance : Auto/Manual
- Electronic Shutter Speed : 1/5 ~ 1/20000s
- On-Board Storage : NA
- Alarm : NA
- Audio : Built-in microphone
- P2P : NA
- Hardware Reset : NA
- Defog : YES
- Smart Feature : SMD(Pedestrian & Vehicle) , Line Crossing , Intrusion,Region Entrance，Region Exiting
Network
- Ethernet: RJ45(10/100BASE-T)
- Video Compression Format: H.265/H.264
- Resolution:
Main Stream@30fps: 2MP(1920×1080),720p(1280×720)
Sub Stream@30fps: D1（704×480）,VGA(640×480） - Video Quality Adjustment : 512Kbps ~ 4Mbps
- P2P : NA
- Bitrate control method : CBR/VBR
- IP : IPv6
- Security : complicated password;Authenticated username and password
- Protocol: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
- Web browser : IE10/11
Electrical & Mechanical
- Input Voltage / Current : POE(IEEE802.3af)
- Power Consumption : PoE（48V）：max 3.05W
- Material : Metal
