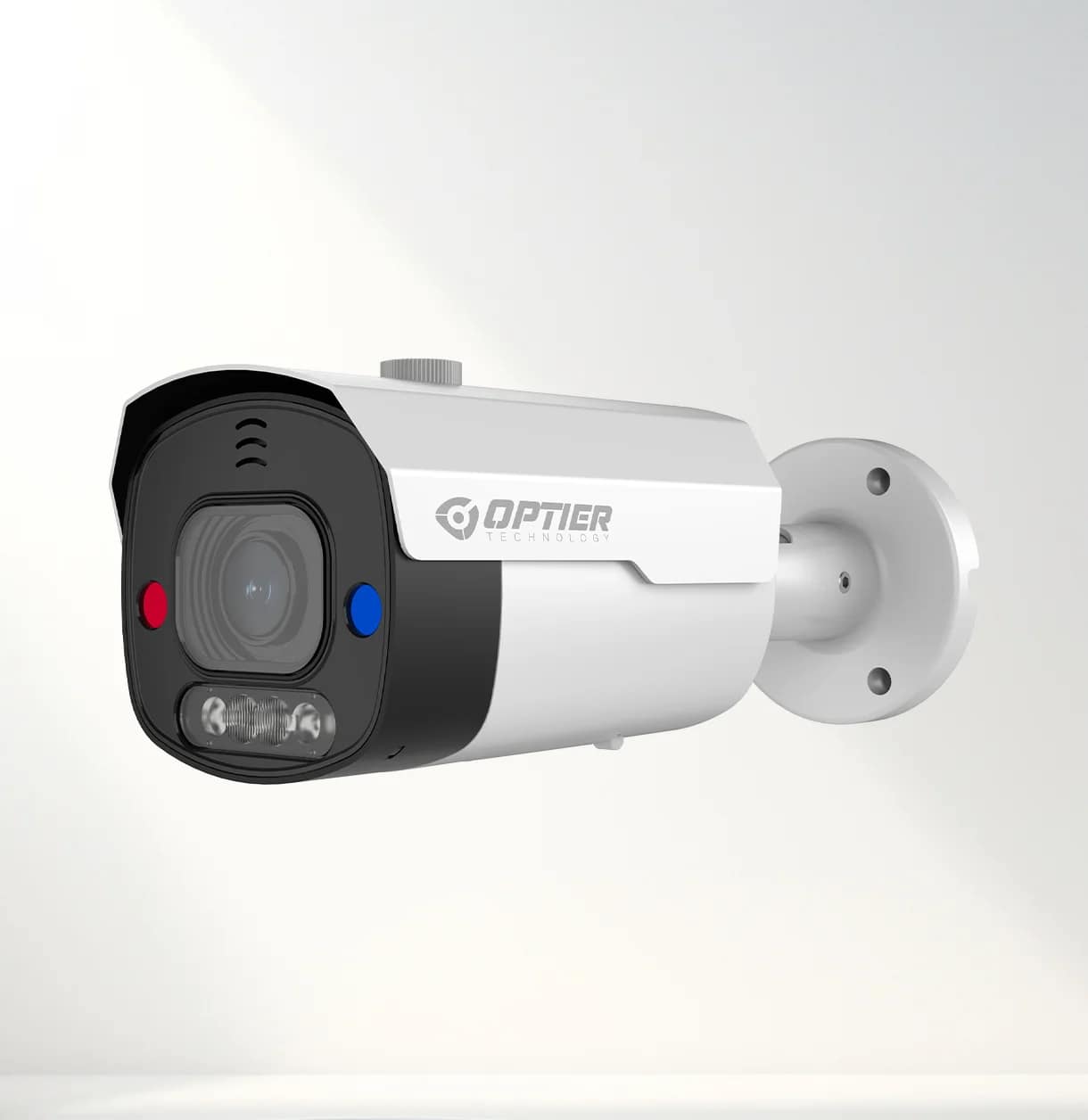

Model : OPT-SE-5MWD3625
Video
- Imaging Device : 1/2.7″
- Effective Pixels : 8MP 3840(H)×2160(V)
- Scanning System : Progressive CMOS
- Min. Illumination : Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON
Lens
- Focal Length (Zoom Ratio) : 2.8-12mm
- Max. Aperture Ratio : F No. 1.2
- Angular Field of View : Horizontal:113(W)-36(T)°, Vertical:59(W)-20(T)°, Diagonal:139(W)-41(T)°
- Min. Object Distance : 1.5m
- Lens Type : Ø16.7
Operational
- IR LED : 4
- WarmLight : 4
- Red Blue Light : 2（1 Red&1 Blue）
- IR Viewable Length : Up to 35m
- WarmLight Viewable Length : Up to 30m
- Type of complementary light : Default warm light, switchable infrared light
- Motion Detection : Off/On (8 Level)
- Wide Dynamic Range : DWDR
- Digital Noise Reduction : 3D DNR
- Image Setting : Full Color Mode/Day&Night Mode/Smart Illumination
- White Balance : Auto/Manual
- Electronic Shutter Speed : 1/5 ~ 1/20000s
- On-Board Storage : Micro SD slot, up to 256GB
- Alarm : NA
- Audio : Built-in microphone&Speaker
- Custom Voice : Yes
- Hardware Reset : Yes
- Smart Feature :Face Detection, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, Rare Sound, Intrusion, Region Entrance, Region Exiting
Network
Ethernet:
RJ45(10/100BASE-T)Video Compression Format:
H.265/H.264Resolution
Main Stream@20fps
8MP(3840×2160),5MP(2592×1944,3072×1728),
4MP(2592×1520),3MP(2304×1296),1080P(1920×1080),
960P(1280*960),720P(1280×720)
Sub Stream@20fps
720P(1280×720),VGA(640×480),QVGA(320×240)
Mobile Stream@20fps
VGA(640×480), QVGA（320×240)
- Video Quality Adjustment:
256Kbps ~ 16Mbps - Bitrate control method:
CBR/VBR - IP: IPv6
- Protocol:TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,
SMTP,NTP,UPnP,SNMP,HTTPS,FTP - Security : IP address filter;complicated password;Authenticated username and password
- Application Programming : ONVIF( Profile S/G/T/M)
Web Viewer: IE10/11
Safari V12.1 above
Firefox V.52 above
Google chrome V.57 above
Edge V.79 above
Electrical & Mechanical
- Input Voltage / Current : D12V/POE(IEEE802.3af)
- Power Consumption : DC12V ：max 11W； POE（48V): max 12.9W
- Material : Metal
