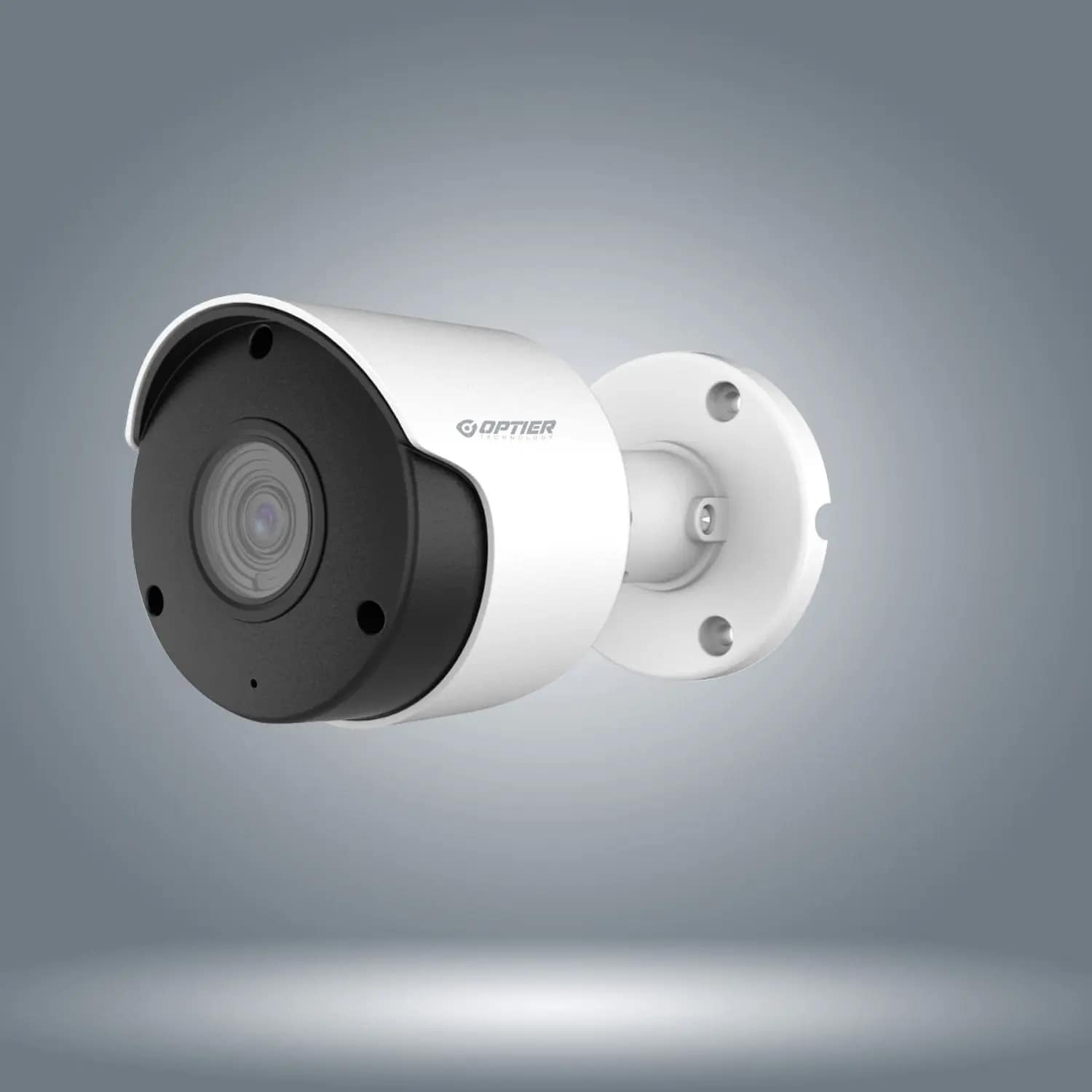

Model : OPT-RY-4MB-VAI-3625F
Video
- Imaging Device : 1/3″
- Effective Pixels : 4MP 2560(H)×1440 (V)
- Scanning System : Progressive CMOS
- Min. Illumination : Color 0.004lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON
Lens
- Focal Length (Zoom Ratio) : 3.6 mm
- Max. Aperture Ratio : F No. 2.3
- Angular Field of View : Horizontal: 75°, Vertical:41°, Diagonal: 88°
- Min. Object Distance : 2m
- Lens Type : Fixed(M12)
Operational
- IR Viewable Length : Up to 30m
- Camera Title : On/Off
- Day & Night : IR cut filter with auto switch（Day/Night/Auto/Schedule）
- Backlight Compensation : Off/On (5 Zone)
- Wide Dynamic Range : DWDR
- Digital Noise Reduction : 3D DNR
- Motion Detection : Off/On (8 Level)
- Privacy Masking : Off/On (4 Zone, Rectangle)
- Gain Control : Auto
- White Balance : Auto/Manual
- Electronic Shutter Speed : 1/5 ~ 1/20000s
- On-Board Storage : Micro SD slot, up to 256GB
- Alarm : NA
- Audio : Built-in microphone
- Hardware Reset : NA
- Smart Feature: SMD（Pedestrian&Vehicle), Perimeter Intrusion, Line Crossing, Intrusion, Region Entrance, Region Exiting
Network
- Ethernet : RJ45(10/100BASE-T)
- Video Compression Format : H.265/H.264
- Resolution:
Main Stream@25fps
4MP(2560×1440)
Sub Stream@25fps
VGA(640×480)） - Video Quality Adjustment : 256Kbps ~ 4Mbps
- Bitrate control method : CBR/VBR
- Streaming Capability : Main/Sub
- IP : IPv4
- Security : complicated password;Authenticated username and password
- Protocol:TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,HTTPS
- Streaming Method : Unicast/Multicast
- Application Programming Interface : ONVIF
- Web Viewer : IE10/11
Electrical & Mechanical
- Input Voltage / Current : D12V/POE(IEEE802.3af)
- Power Consumption : 1.2-4W
- Material : Plastics
