Video Process: 265+/H.265/H.264 video coding, support dual stream, AVI format; code stream 500k~8M bps adjustable, support PAL and NTSC
Frame Rates: 5MP and 4MP@25 FPS; 3MP and below @30FPS
Image Output: Main stream:2880×1620, 2592×1520, 2560×1440, 2048×1520, 2304×1296, 1920×1080;
Sub stream:800×448, 640×480, 640×360, 352×288;

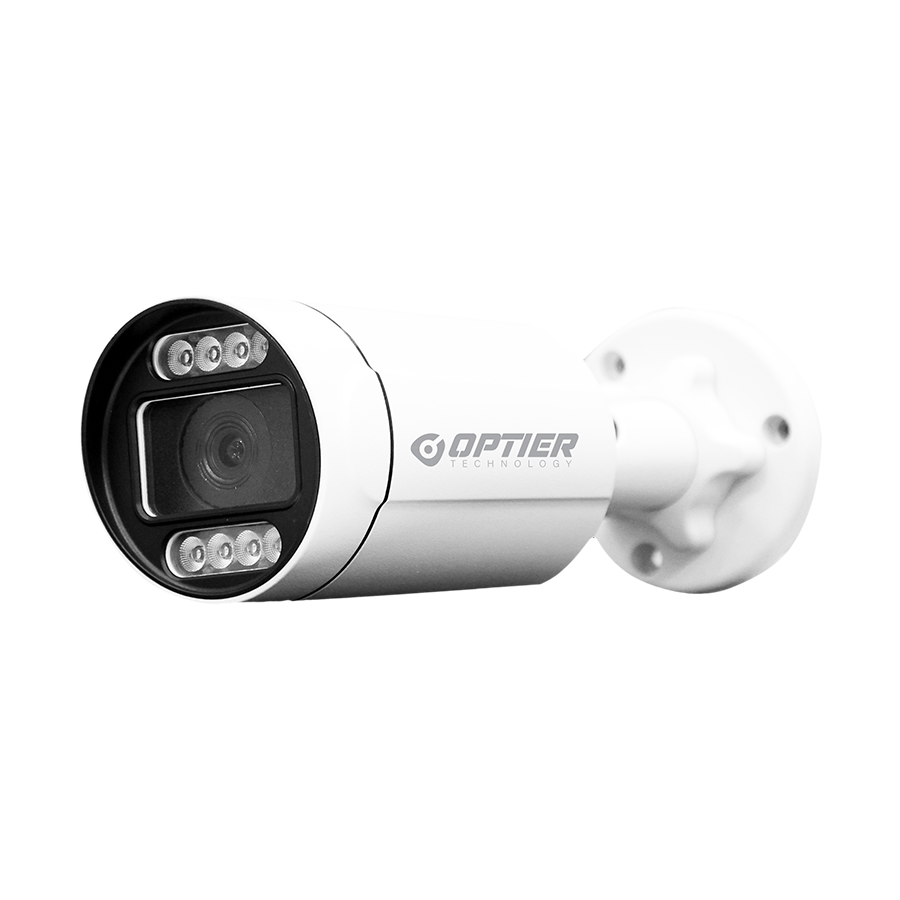

Colourview: The Dual LED 5MP IP Color View Camera is a cutting-edge surveillance solution designed to deliver high-quality video footage with advanced features for enhanced security monitoring. With its 5-megapixel resolution and dual LED technology, this camera provides clear and vivid images, ensuring optimal visibility both day and night.
5MP Resolution: The camera boasts a 5-megapixel resolution, ensuring detailed and sharp images for effective surveillance and identification. Dual LED Technology: Equipped with dual LED technology, this camera enhances color reproduction in low-light conditions, providing clearer and more accurate video footage during nighttime surveillance.

Lens: 8 [email protected]: horizontal FOV: 84°, vertical FOV:44°, Lens Mount: M12IR: 12milX8pcs SMD LED, IR Range:60m
Smart IR: Support
Shutter Time: Auto/Manual, 1/3~1/10000s
Day/Night: IR cut filter with auto switch
Wide Dynamic Range: DWDR
Digital noise reduction: 2D/3D DNR
Image Settings: Brightness/Contrast/Saturation/Hue/Sharpness
BLC: Support
HLC: Support
ROI: Support
Defog: Support
Sensor: 5MP 1/2.7″ CMOS, [email protected](color), 0Lux(IR ON); integrate IR-CUT drive, support linkage control between Sensor &IR-CUT& photosensitive& LED fill light, support day/night switch; Event: Motion Detection, Video Shelter

General: Metal Housing, Weather Proof: IP66, Vandal proof: IK10 Dimensions: ¢235.4x 82.6(H) mm, Weight: 550g
System Structure: Embedded RTOS design, dual-core; 32 bits DSP, pure hardware compression, watch dog, 16MB FLASH, 128MB DDR3;
Business Functions: Configure by WEB, OSD(on screen display),real-time video transmission, motion detection; support remote surveillance client software(Seetong); support mobile monitoring(Iphone, Android), support cloud service;
Optional Function: E(POE cable power supply), Extended interface(Alarm IO, AUART_RX, Hard light-sensitive input, PWM white light board, PWM infrared light board)
Others: DC12V power input interface, 1.8W power consumption, front end power input, light protection, anti-static, anti-inverse connect, support 18V turn off voltage protection; size:38×38×11.1mm, 8.9g, without housing PCBA, 38 size single structure

Network Interface: 1*RJ45 Ethernet interface, 10/100M self-adaption, 8KV anti-static electric capacity; support RTSP/DHCP/NTP, GB/T28181, compatible ONVIF and so on network protocols
LED Passive Interface: 1* IR LED control output interface, 1*IRCUT interface, support linkage control between IR-CUT and image.

Audio Interface: 1channel input, support mic or pickup input;1channel output, support headset or amplifier play
Audio code: 711 CODEC standard, support dual voice talkback, Audio and video synchronization

Data Sheet: Download

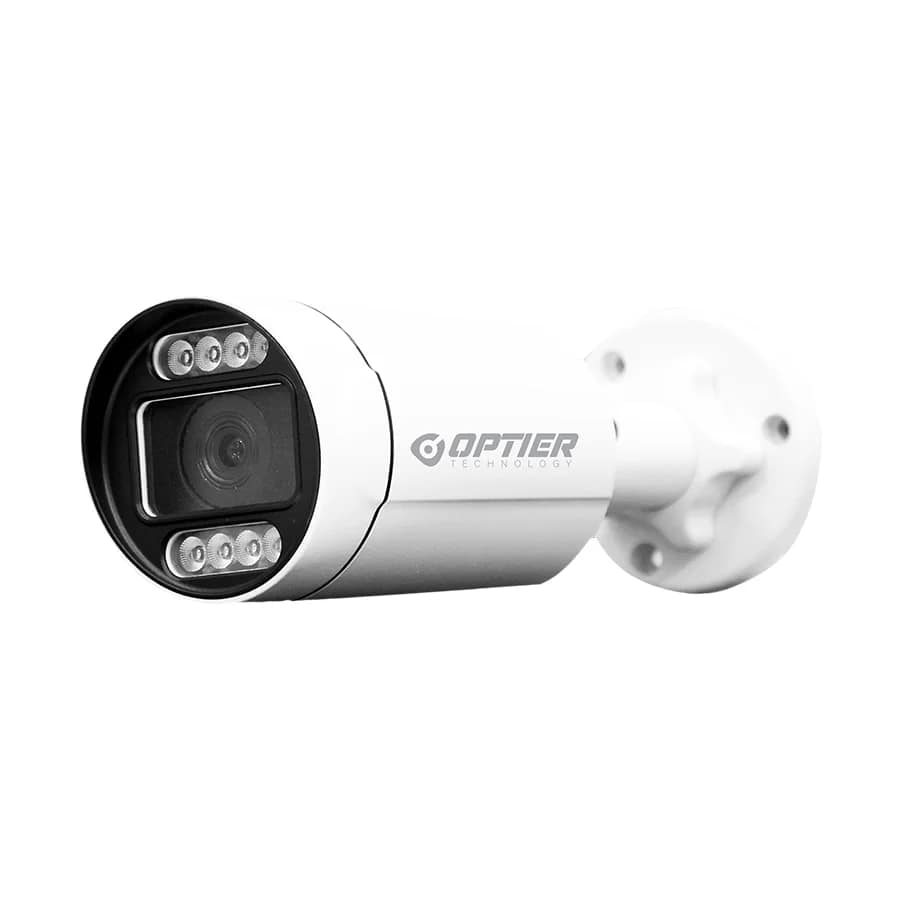

Dual Led 5MP 8 MM IP Color View Camera
