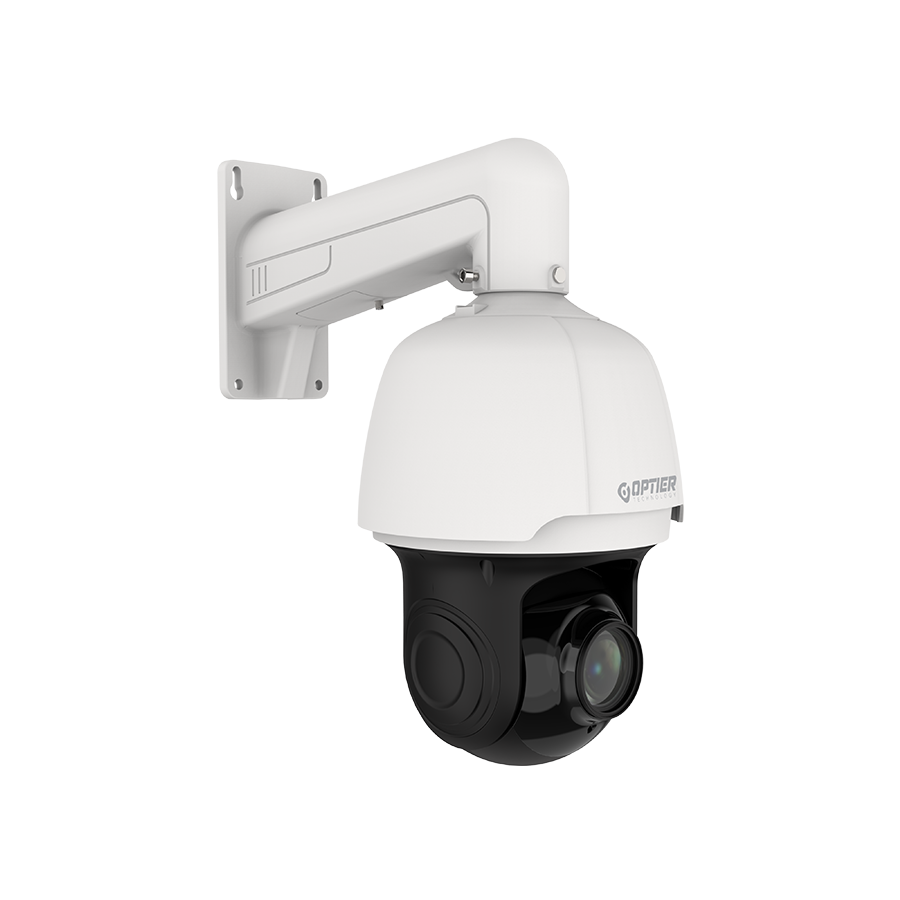

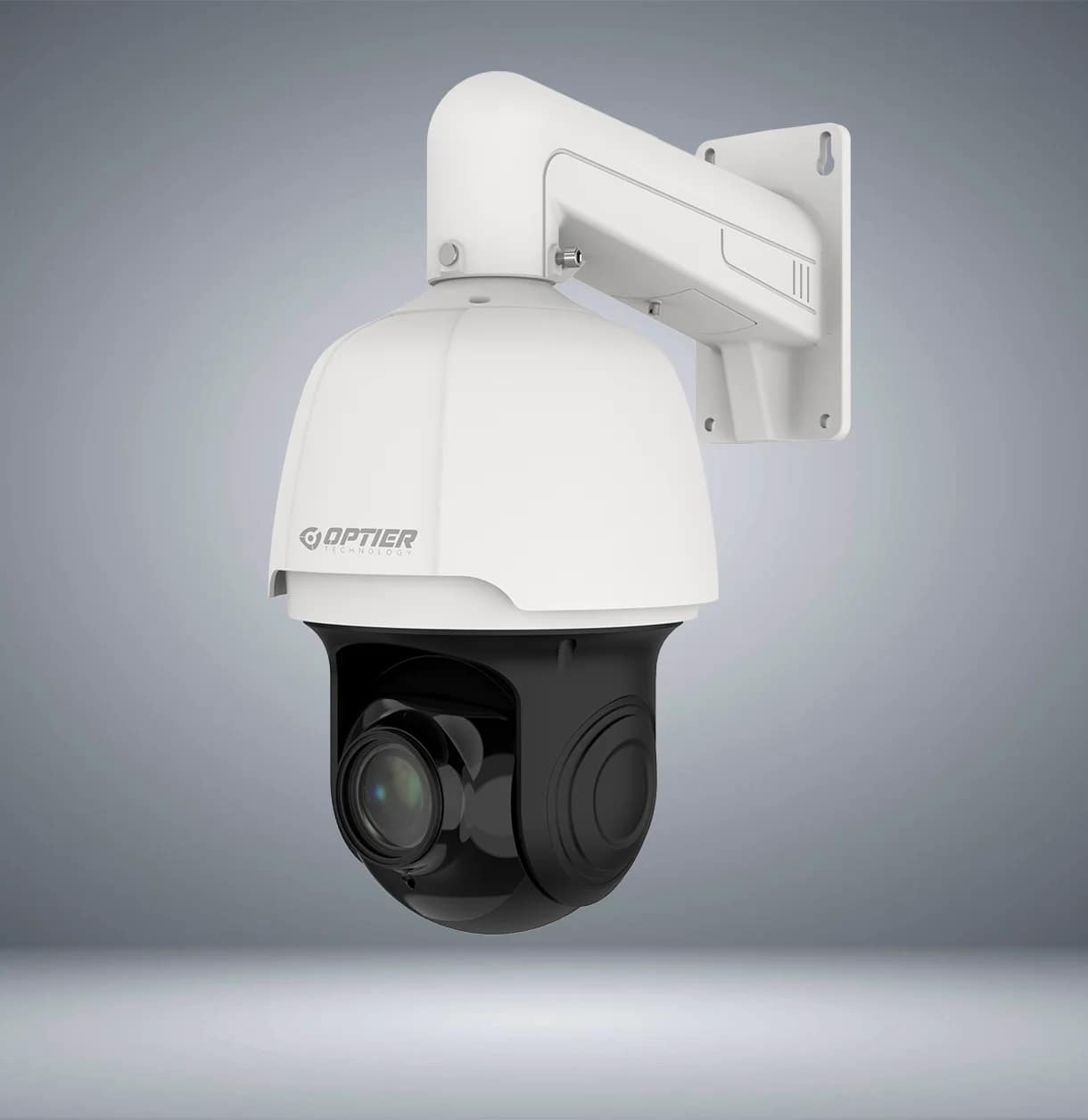

33x 5mp 8 Inch IP Intelligent Alert Tracking And Security PTZ Dome Camera

Product Details

Model : OPT-RY-5MPTZ-33X

Smart Cruise
Auto Tracking
33x Optical Zoom
Up to 5MP High Resolution
IP66
WDR
150M Infrared Distance
Smart Cruise Scanning, Support 255 Preset Points, 4 Cruise Scans (32 preset points can be added to each scan), 1-click Cruise, 1-click Guard, 3D Position
Track the detected person(s) till the person(s) cannot be detected or disappears
High quality imaging with 5MP resolution
33x optical zoom provide close up views over expansive areas
Expansive night view with up to 150M IR distance
Clear imaging against strong backlight due to 120 dB WDR technology
Water and dust resistant (IP66)

Power

DC 12V/POE+, max. 25.6 W

Operating Condition

-30 °C to 60 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

Material

Metal

Dimension

Ø 206.4 mm × 351.8 mm (Ø 8.13" × 13.85")

Weight

Approx. 3.7 kg (8.15lb.)

Image Sensor

1/2.7" Progressive Scan CMOS

Max. Resolution

2592x1944

Min. Illumination

Color: 0.003 Lux @ (F1.6, AGC ON), B/W:0 Lux with IR

Shutter Speed

1/5 s to 1/20000 s

Slow Shutter

Yes

Day & Night

IR cut filter

Zoom

33x optical

Focal Length

4.3mm to 142mm

FOV

Horizontal field of view: 55° to 2.3° (wide-tele)
Vertical field of view: 41.6° to 1.7° (wide-tele)
Diagonal field of view: 67.9° to 2.8° (wide-tele)

Aperture

Max. F1.6

Focus

Auto, manual

Supplement Light Range

IR Distance: up to 150m

Supplement Light Type

IR

Movement Range (Pan)

360°

Movement Range (Tilt)

-10° to 90° (auto flip)

Pan Speed

Configurable from 0.6° to 200°/s; preset speed: 200°/s

Tilt Speed

Configurable from 0.6° to 90°/s; preset speed: 100°/s

Presets

255

Patrol Scan

1 Scan

Pattern Scan

4 pattern

Power-Off Memory

Yes

3D Positioning

Yes

Main Stream

50 Hz: 25 fps (2592x1944 / 2592x1520 / 2048x1536 / 2304x1296 / 1920x1080 / 1280x960 / 1280x720);
60 Hz: 30 fps (2592x1944 / 2592x1520 / 2048x1536 / 2304x1296 / 1920x1080 / 1280x960 / 1280x720);

Sub-Stream

50 Hz: 25 fps (1280x720 / 640x480 / 320x240);
60 Hz: 30 fps (1280x720 / 640x480 / 320x240);

Third Stream

50 Hz: 25 fps (640x480 / 320x240);
60 Hz: 30 fps (640x480 / 320x240);

Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264
Sub-stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third stream: H.265+ / H.265 / H.264+ / H.264

Video Bit Rate

8 kbps to 8192 kbps

H.264 Type

Baseline Profile / Main Profile / High Profile

H.265 Type

Main Profile

Region Of Interest (ROI)

NA

Audio Compression

G.711a/G.711u

Protocols

IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE

API

Onvif (Profile S, Profile G, Profile T), Http API

Simultaneous

Live View Up to 15 channels

User/Host

5 User

Security

Password protection, complicated password, HTTPS encryption, IP address filter, control timeout settings

Client

VMS

Web Browser

IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range (WDR)

120 dB

Defog

NA

Image Stabilization

NA

Image Settings

Saturation, brightness, contrast, sharpness, Hue and white balance adjustable by client software or web browser

Privacy

4 privacy masks

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

Alarm

1 input, 1 output

Audio

1 input, 1 output

Reset

Yes

Built-In Speaker

NA

Basic Event

Motion detection, alarm input and output

Deep Learning Function

Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate Recognition, Rare Sound, Intrusion, Region Entrance, Region Exiting
