Model : OPT-RY-5MB-2812MM-AI-WDR30F

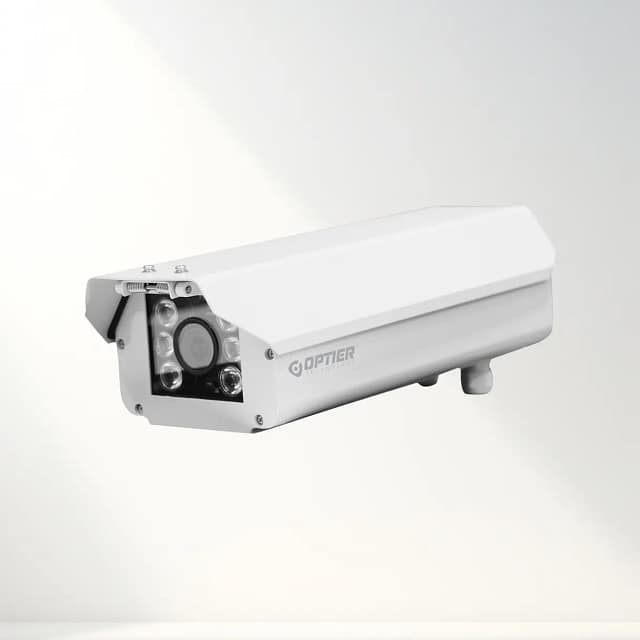

5 Megapixel Motorized High quality imaging with progressive scan CMOS Real-time Support SMART H.265/H.264 coding Up to 45M IR distance Bullet network camera
Video
- Imaging Device: 1/2.7
- Effective Pixels: 5MP 2880（H）x1620（V）
- Scanning System: Progressive CMOS
- Illumination: Color 0.002lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON
Lens
- Focal Length (Zoom Ratio): 8-12 mm
- Aperture Ratio: F No. 1.8(W) ~ 3.3(T)
- Angular Field of View: Horizontal: 107-34°, Vertical: 55-19°, Diagonal: 134-38°
- Object Distance: 1.2m（W/T）
- Lens: Motorized(Ø14)
Operational
- IR Viewable Length: Up to 45m
- Camera Title: On/Off
- Day & Night: IR cut filter with auto switch（Day/Night/Auto/Image/Schedule）
- Backlight Compensation: Off/On (5 Zone)
- Wide Dynamic Range: WDR
- Digital Noise Reduction: 3D DNR
- Motion Detection: Off/On (8 Level)
- Privacy Masking: Off/On (4 Zone, Rectangle)
- Gain Control: Auto
- White Balance: Auto/Manual
- Electronic Shutter Speed: 1/5 ~ 1/20000s
- On-Board Storage: Micro SD slot, up to 256GB
- Alarm: 1 input, 1 output
- Audio: 1 input (RCA), 1 output (RCA)
- Hardware Reset: Yes
- Smart Feature: Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting
Network
- Ethernet: RJ45(10/100BASE-T)
- Video Compression Format: 265/H.264
- Resolution: Mainstream @30fps
5MP(2880×1620),4MP(2560×1440)
3MP(2304×1296),1080P(1920×1080)
720P(1280×720)
Substream @30fps
720P(1280×720),VGA(640×480),QVGA(320×240)
Mobilestream @30fps
VGA(640×480), QVGA（320×240） - Video Quality Adjustment: 256Kbps ~ 8Mbps
- Bitrate control method: CBR/VBR
- IP: IPv6
- Streaming Capability: Triple-Stream(Main/Sub/Moile)
- Protocol: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
- Web browser: IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
- Security: IP address filter; complicated password;Authenticated username and password
- Streaming Method: Unicast/Multicast
- Application Programming Interface: ONVIF( Profile S/G/T/M)
Electrical
- Input Voltage / Current: D12V/POE(IEEE802.3af)
- Power Consumption (IR OFF): 3W-4W
- Power Consumption (IR ON): 7W-9W
Mechanical
- Material: Metal
- Dimensions (HxWxD): 242*87.4*83.88mm
- Weight: 811g
