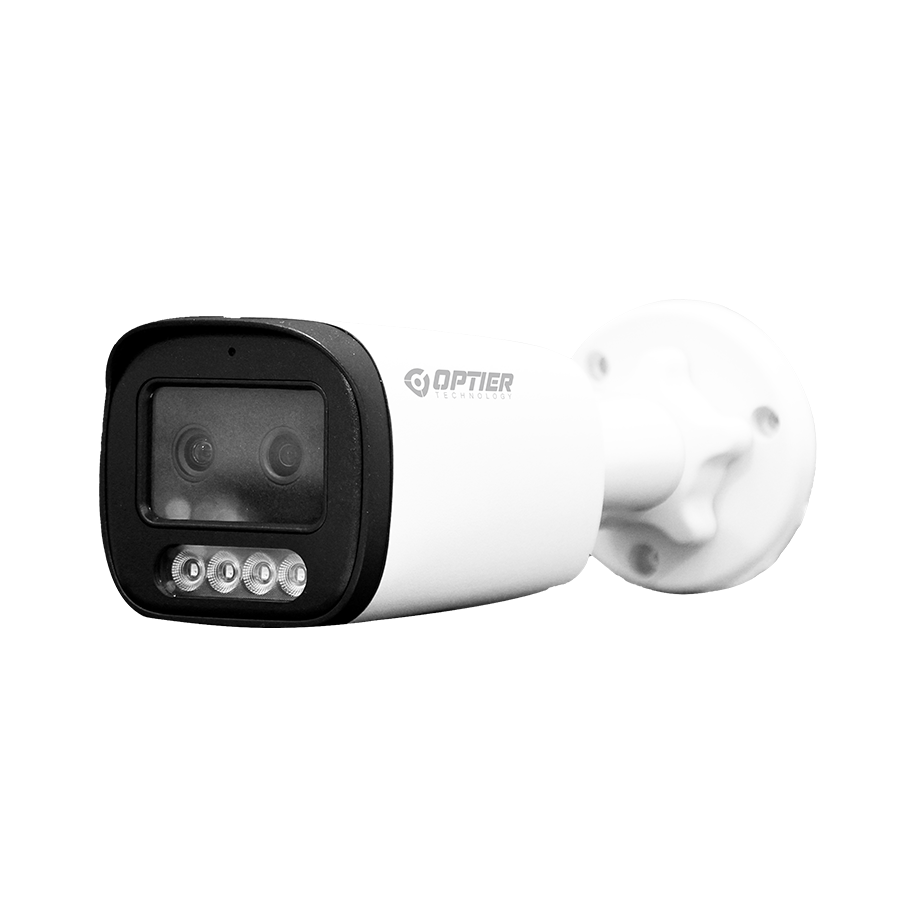

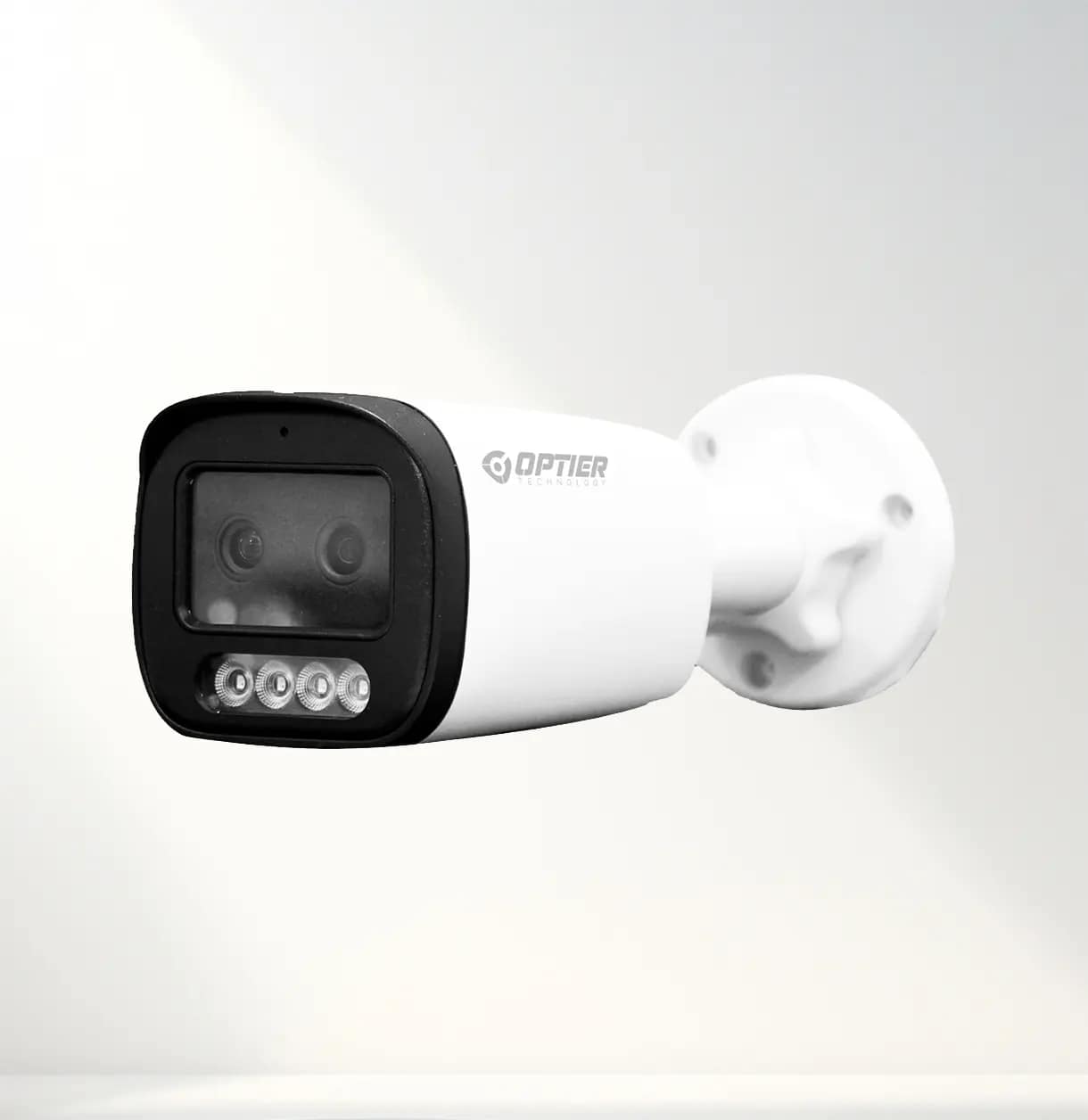

Two Lens 4 Megapixel Low Light Dark Defender Bullet Network Camera

Two Lens 4 Megapixel Low Light Dark Defender Bullet Network Camera

Product Details

Model : OPT-SE-44SEDD2L

  • 1/1.8″ Progressive Scan Megapixel CMOS
  • Resolution- 2560*1440, 4 Megapixels
  • Two lens
  • Two way Audio
  • True Day & Night (IR Cut Removable)
  • Warm light 30-40m
  • ONVIF Protocol
  • DWDR, 3D Noise Reduction
  • Support WEB, VMS, P2P APP connection
  • Motion Detection and Privacy Masking
  • IP66
  • DC12V, PoE

Power Supply

DC12V / POE

Protection

IP66

Size

109(D)*90.78(H)mm

Working Temperature

-20°C ~ 50°C

Working Humidity

0-90%

Motion Detection

Support day arming/night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
Support full screen/area detection
Linkage setting support: upload mail/voice broadcast alarm/alarm light

Obstruction Alarm

Support day arming/night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
Support one detection area
Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm

Privacy mask

Support Four areas setting

Network Port

RJ45 10M/100M network self-adjustable

Audio

Two way communication

TF Card slot

Support, 512G in max

Sensor

1/1.8" Megapixel CMOS sensor Ultra low light full colour

Lens

Two Lens

IR Distance

30-40m(4x IR Array leds)

WDR

WDR 140dB (off/low/middle/high)

IR Led Control

Auto/Manual/Off

DNR

Off/Low/Middle/High/Higher

Defog

Off/Low/Middle/High

Mirror

Off/ Horizontal Mirror/Vertical Mirror/180 degree flip

Image Setting

Brightness, Contrast, Sharpness, Saturation, Chroma

Video Encode Standard

Smart H.265/H.265/H.264

Encoding Feature

Main stream:
4MP(2560*1440), 3MP(2304*1296), 2MP(1920*1080) 25fps
Sub stream:
D1(720*576), VGA(640*480), Q720P(640*360), CIF(352*288)

Video Code Rate

Fixed code rate, variable code rate (Main stream code:160Kbps-4000kbps)

Video Type

Composited stream / video stream

Audio Standard

G.711u / G.711A 64Kbps

Protocol

TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP

Connection Protocol

ONVIF, SLINK, HIK, TST

Security Mode

Authorized user name and password, HTTPS with password, AES connecting with password, RTSP verification

Motion Detection

Setup detection area, multi-level sensitivity available to setup

Obstruction Alarm

Support 1 area setting

Privacy Mask

Support 4 area privacy mask

Schedule Linkage

Upload email/FTP upload picture, Arming time support day arming/night arming/cutsomized arming

Equipment Anomaly Inspection

Support network disconnection alarm, IP conflict alarm, illegal access alarm

Character Overlay(OSD)

Support time OSD/Title OSD, multi-line OSD (two lines), Main stream font support 12-60pt, sub stream font support 12-36pt

Area Intrusion

Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points)
Support video stream overlay detection frame
Support specified target type detection: human, vehicle (non-motor vehicle also can be detected)
Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm

Line-crossing Detection

Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
Support one detection line, supports detection directions: A->B
Support video stream overlay detection frame
Support specified target type detection: human, motor vehicle (non-motor vehicle also can be detected)
Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm

Wandering/Loitering

Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points)
Support video stream overlay detection frame
Support wandering time setting(10~3600S)
Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm

Absent Alarm

Support day arming / night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points)
Support video stream overlay detection frame
Support absent time setting(10-3600S)
Support at least 1-3 people on duty
Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm

Vehicle Illegal Parking

Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points)
Support video stream overlay detection frame
Support illegal parking time setting(10-3600S)
Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm

Vehicle Retrograding

Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 4 points)
Support video stream overlay detection frame
Supports four detection directions, detection line support B->A direction
Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm
