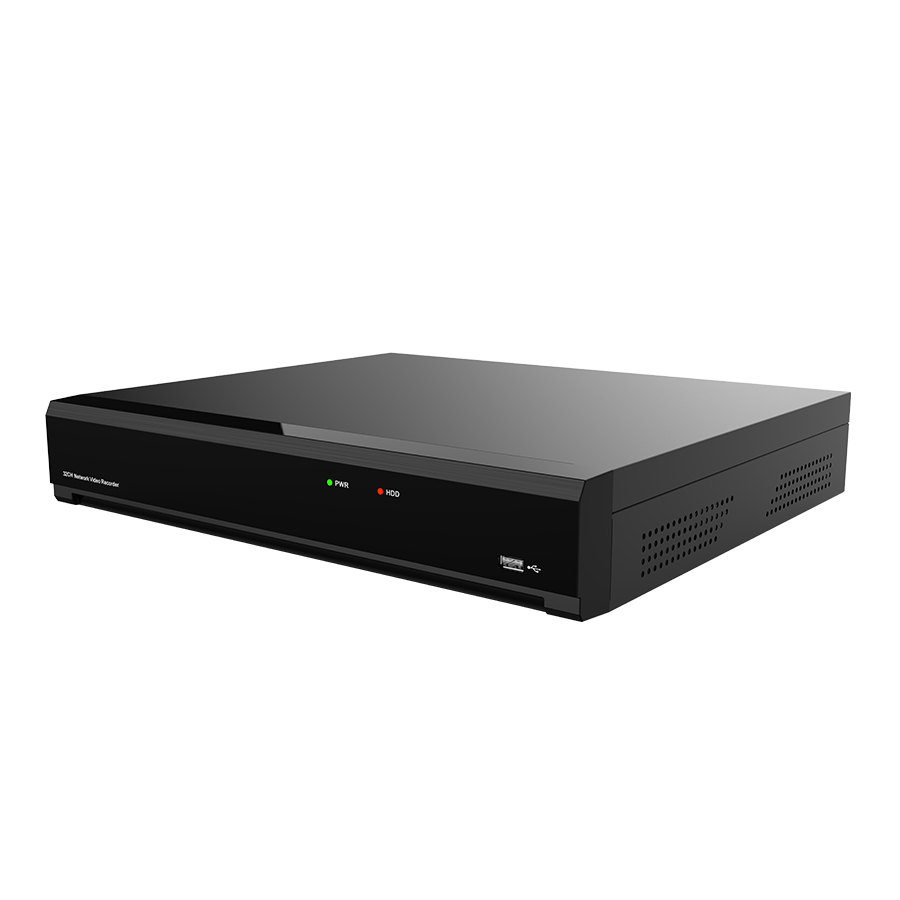

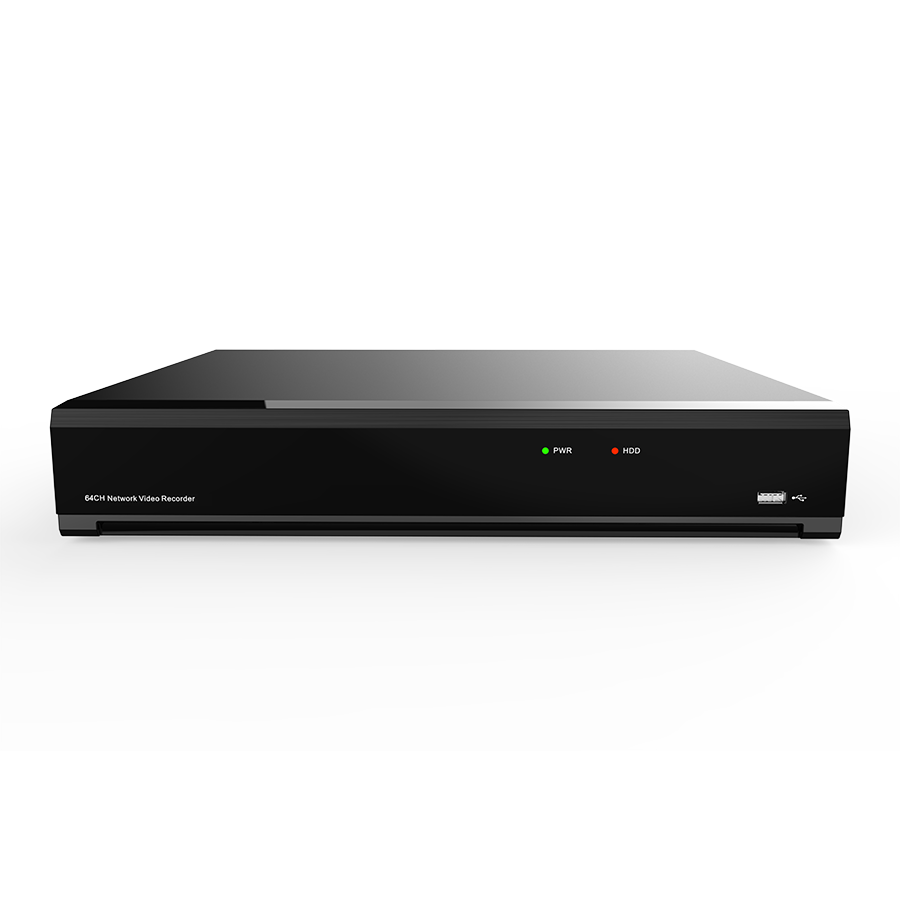

Model : OPT-64-4ST-4HD-PVR
- Up to 64-Channel IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Recording Compression : 4K:240fps 4MP:480fps 2MP:960fps Up to 640 incoming bandwidth
- 4 SATA interfaces for HDD connection (up to 18 TB capacity per HDD) 16-ch synchronous playback
General
- OSD Language: English / French / Spanish / Portuguese / German / Italian / Greek Danish / Finnish / Russia / Hebrew / Turkish / Bulgarian / Arabic Korean / Japanese / Thai / Hindi / Romanian / Dutch / Polis
- Dimension (WxDxH): 378*325.8*66mm
- Input Voltage Current: 12V/5A
- Power consumption (excluding hard disk): 8W
- Operating Temperature Humidity: Temperature : -10°C~+50°C (14°F ~ 122°F)
Humidity : Less than 90%RH
Perfomance
- Compression: Audio: G.711A/G.711U
Video : H.264/H.265/H.264+/H.265+ - Frame rate: 4K:240fps / 4MP:480fps / 2MP:960fps
- Event: MD(Sensitivity Level 1~8)
Videlo loss
Beep, Email,
Push notification to Mobile APP - Playback Function: Fast forward / backward (2x, 4x, 8x,16x)
Slow forward (1/2x, 1/4x, 1/8x,1/16x) - Playback: Max 16CH playback
Interface
- P/W Reset: YES
- HDMI: 3 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 , 1920*1080 , 1600*1200，1920*1200, 3840*2160/7680*4320/EDID Async out
If the output resolution of HDMI 1 is set to 8K, the maximum output resolution of HDMI 3 and 4 will be limited to 1080P, and HDMI 2 will be disabled.
1 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 /EDID） Async out - Ethernet: 2 RJ45 1000 Base-T
- USB: USB2.0*1(front) / USB3.0*2(rear)
- Audio out: 1
- E-sata: 1
- HDD: 4 SATA HDD,up to 18TB (Enterprise-Class)
- Line in: 1
- RS232: 1*RJ45
- RS485: 1
- Alarm Input/out: 16in /1out
Video
- Resolution: 12MP, 8MP, 5MP, 3MP, 2MP(1080P), 1.3MP(960P), 1.0MP(720P)
- Inputs: 640M
- Out: 640M
