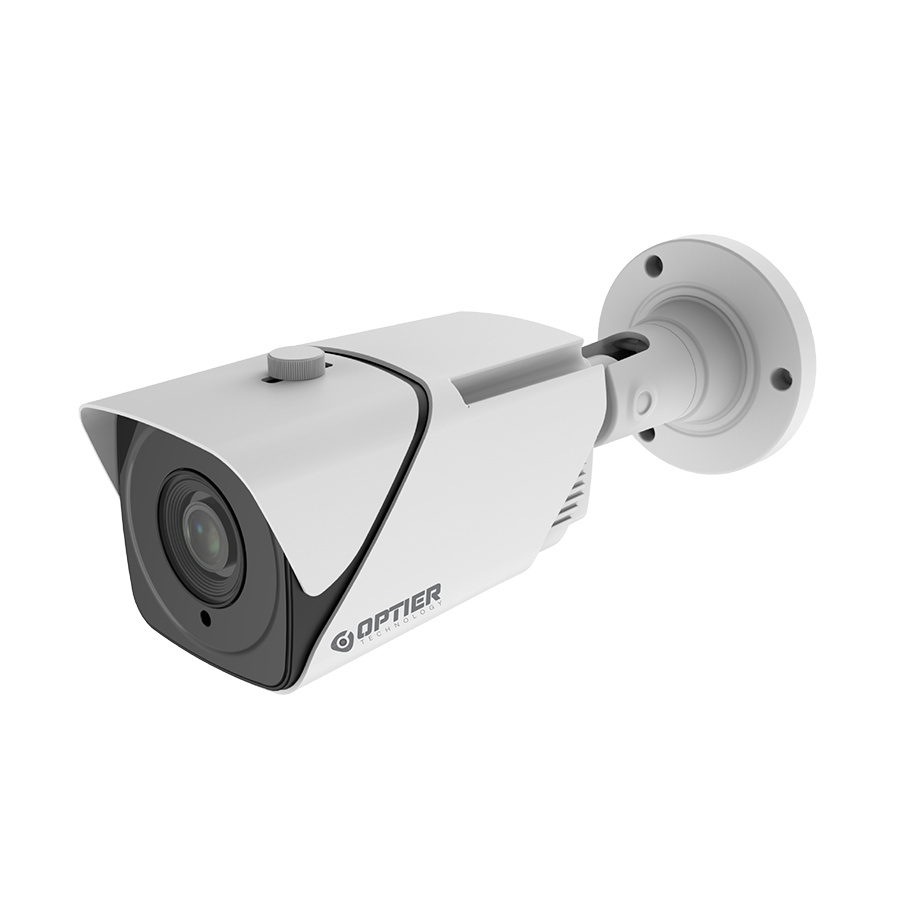

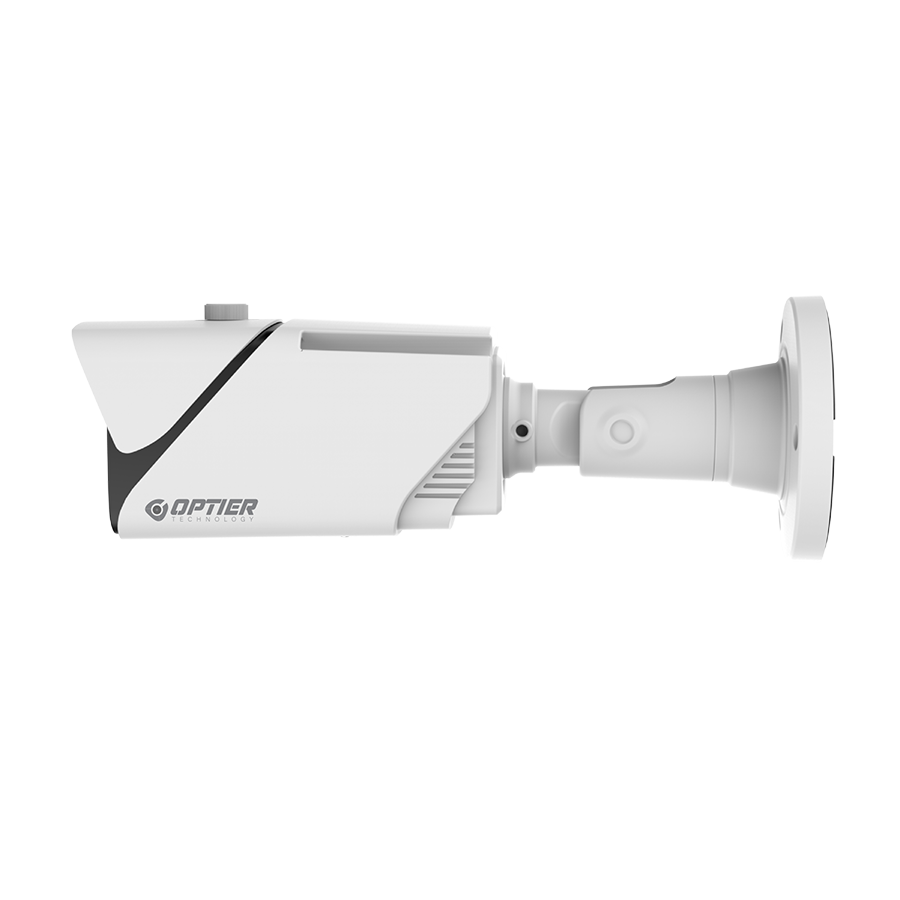

Professional 5 MP AI Motorized Bullet Network Camera WDR-30F

Model : OPT-RY-5MB-3680-AI-WDR-30F

5 Megapixel 5-50 mm Motorized High quality imaging with progressive scan CMOS Real time Support SMART H.265/H.264 coding Up to 80M IR distance Bullet network camera

Imaging Device

1/2.7

Effective Pixels

5MP 2592(H)×1944(V)

Scanning System

Progressive CMOS

Min. Illumination

Color 0.002lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON

Focal Length (Zoom Ratio)

5 ~ 50 mm

Max. Aperture Ratio

F No. 2.0±5%

Angular Field of View

Horizontal: 45-7°, Vertical:33-5 °, Diagonal: 58-9 °

Min. Object Distance

0.2m~∞

Lens

Motorized(Ø14)

IR Viewable Length

Up to 80m

Camera Title

On/Off

Day & Night

IR cut filter with auto switch（Day/Night/Auto/Image/Schedule）

Backlight Compensation

Off/On (5 Zone)

Wide Dynamic Range

WDR

Digital Noise Reduction

3D DNR

Motion Detection

Off/On (8 Level)

Privacy Masking

Off/On (4 Zone, Rectangle)

Gain Control

Auto

White Balance

Auto/Manual

Electronic Shutter Speed

1/5 ~ 1/20000s

On-Board Storage

Micro SD slot, up to 256GB

Alarm

1 input, 1 output

Audio

1 input (RCA), 1 output (RCA)

Hardware Reset

Yes

Smart Feature

Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting

Ethernet

RJ45(10/100BASE-T)

Video Compression Format

H.265/H.264

Resolution

Main Stream
5MP(2592x1944), 4MP(2592x1520), 3MP(2304x1296)/(20481536）
1080P(1920x1080), 960P(1280960)
Sub Stream
1080P(1920x1080)，720P(1280x720),VGA(640x480)
Mobile Stream
VGA(640x480), QVGA（320x240）

Max. Framerate

50Hz: 25fps@5MP / 60Hz: 30fps@5MP

Video Quality Adjustment

256Kbps ~ 8Mbps

Bitrate control method

CBR/VBR

IP

IPv6

Streaming Capability

Triple-Stream(Main/Sub/Moile)

Protocol

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP

Web browser

IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above

Get in touch with us

Professional 5 MP AI Motorized Bullet Network Camera WDR-30F

Product Details

Model : OPT-RY-5MB-3680-AI-WDR-30F

Imaging Device

1/2.7

Effective Pixels

5MP 2592(H)×1944(V)

Scanning System

Progressive CMOS

Min. Illumination

Color 0.002lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON

Focal Length (Zoom Ratio)

5 ~ 50 mm

Max. Aperture Ratio

F No. 2.0±5%

Angular Field of View

Horizontal: 45-7°, Vertical:33-5 °, Diagonal: 58-9 °

Min. Object Distance

0.2m~∞

Lens

Motorized(Ø14)

IR Viewable Length

Up to 80m

Camera Title

On/Off

Day & Night

IR cut filter with auto switch（Day/Night/Auto/Image/Schedule）

Backlight Compensation

Off/On (5 Zone)

Wide Dynamic Range

WDR

Digital Noise Reduction

3D DNR

Motion Detection

Off/On (8 Level)

Privacy Masking

Off/On (4 Zone, Rectangle)

Gain Control

Auto

White Balance

Auto/Manual

Electronic Shutter Speed

1/5 ~ 1/20000s

On-Board Storage

Micro SD slot, up to 256GB

Alarm

1 input, 1 output

Audio

1 input (RCA), 1 output (RCA)

Hardware Reset

Yes

Smart Feature

Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting

Ethernet

RJ45(10/100BASE-T)

Video Compression Format

H.265/H.264

Resolution

Main Stream 5MP(2592x1944), 4MP(2592x1520), 3MP(2304x1296)/(2048*1536） 1080P(1920x1080), 960P(1280*960) Sub Stream 1080P(1920x1080)，720P(1280x720),VGA(640x480) Mobile Stream VGA(640x480), QVGA（320x240）

Max. Framerate

50Hz: 25fps@5MP / 60Hz: 30fps@5MP

Video Quality Adjustment

256Kbps ~ 8Mbps

Bitrate control method

CBR/VBR

IP

IPv6

Streaming Capability

Triple-Stream(Main/Sub/Moile)

Protocol

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP

Web browser

IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above

Streaming Method

Unicast/Multicast

Application Programming Interface

ONVIF (Profile S/G/T/M)

Operating Conditions

-35～+60°C/less than ≤ 90% RH

Main Stream
5MP(2592x1944), 4MP(2592x1520), 3MP(2304x1296)/(20481536）
1080P(1920x1080), 960P(1280960)
Sub Stream
1080P(1920x1080)，720P(1280x720),VGA(640x480)
Mobile Stream
VGA(640x480), QVGA（320x240）
