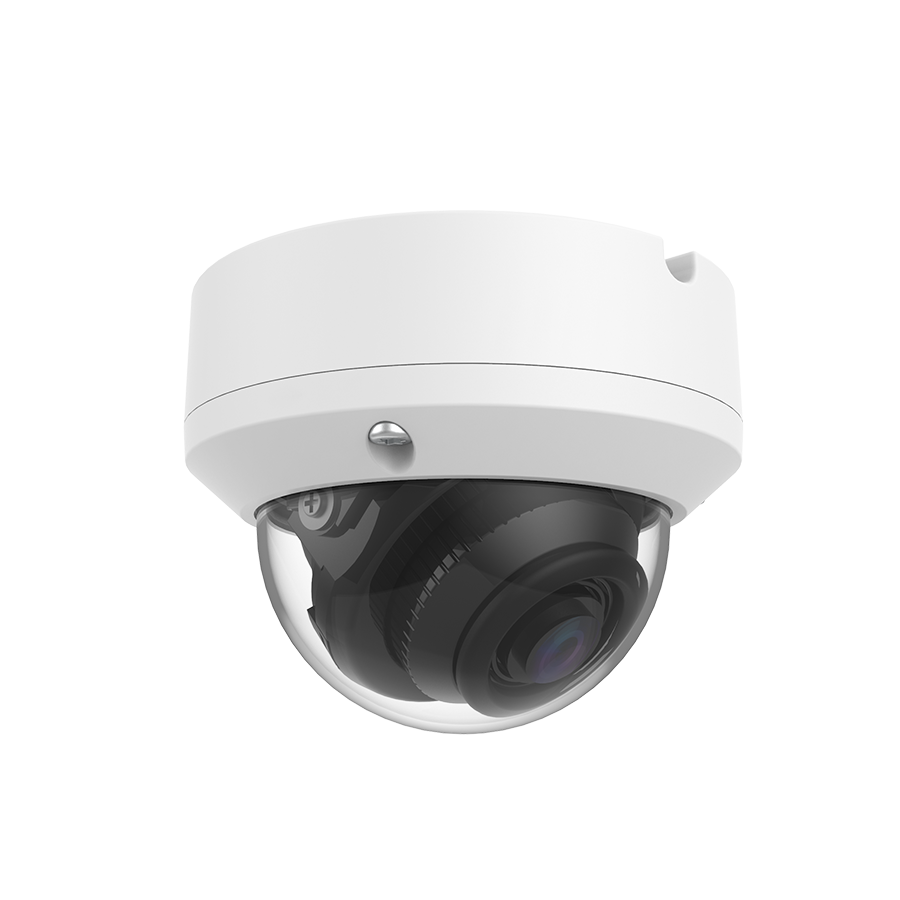

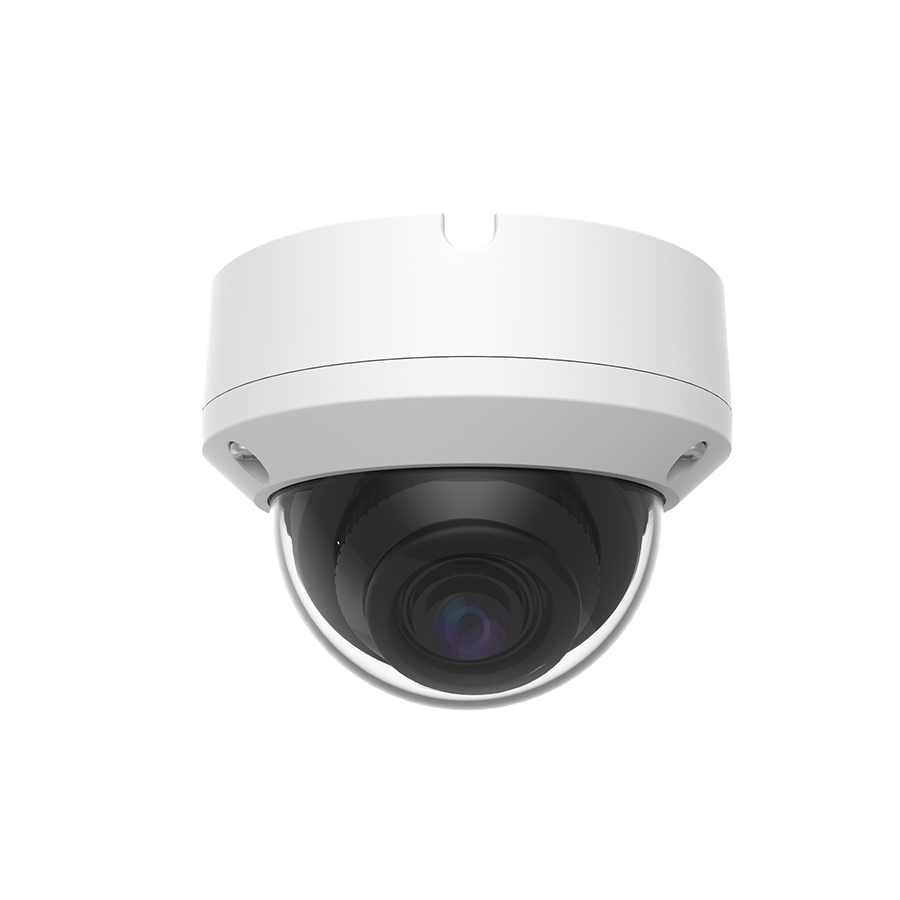

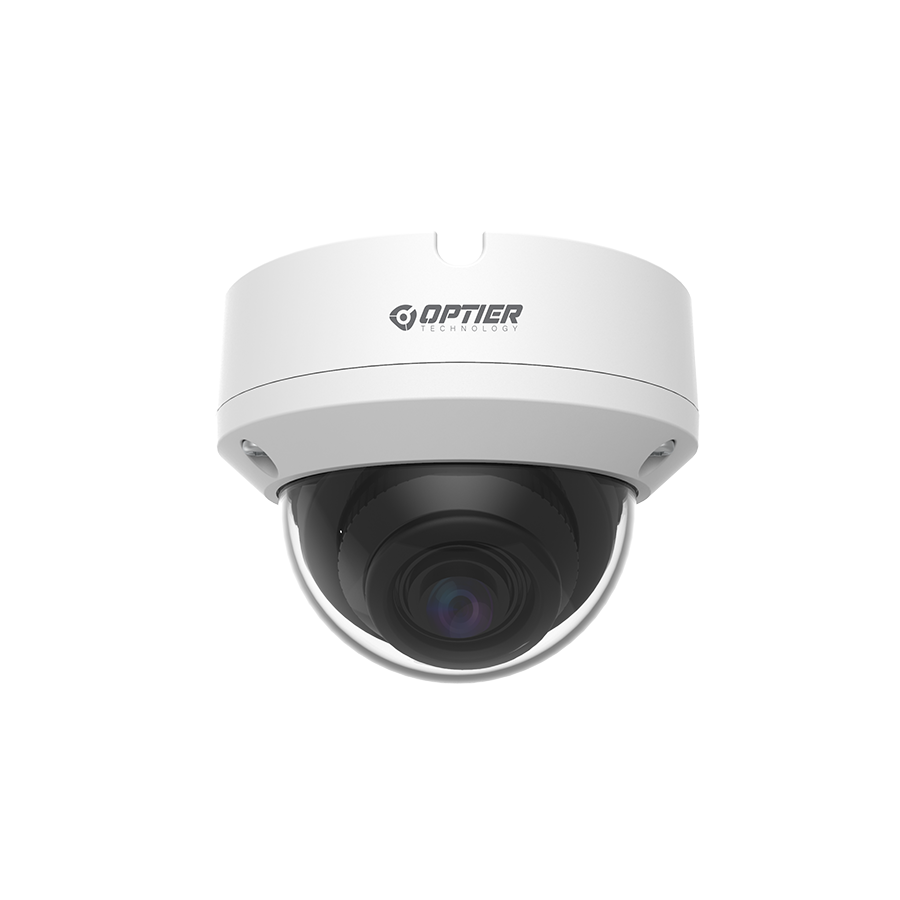

Professional 5 MP 30 fps AI Vandal Proof Dome Network Camera

Model : OPT-RY-5MD-3630-AI-WDR-30F

5 Megapixel High quality imaging with progressive CMOS WDR Real time Support SMART H.265/H.264 coding Up to 30M IR distance Bullet network camera

Imaging Device

1/2.7"

Effective Pixels

5MP 2592(H)×1944(V)

Scanning System

Progressive CMOS

Min. Illumination

Color 0.002lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON

Focal Length (Zoom Ratio)

2.8mm

Max. Aperture Ratio

F No. 1.6

Angular Field of View

Horizontal: 97°, Vertical: 70°, Diagonal: 128°

Min. Object Distance

1.8m

Lens Type

Fixed(M12)

IR Viewable Length

Up to 30m

Camera Title

On/Off

Day & Night

IR cut filter with auto switch（Day/Night/Auto/Image/Schedule）

Backlight Compensation

Off/On (5 Zone)

Wide Dynamic Range

WDR

Digital Noise Reduction

3D DNR

Motion Detection

Off/On (8 Level)

Privacy Masking

Off/On (4 Zone, Rectangle)

Gain Control

Auto

White Balance

Auto/Manual

Electronic Shutter Speed

1/5 ~ 1/20000s

On-Board Storage

Micro SD slot, up to 256GB

Alarm

1 input, 1 output

Audio

1 input (RCA), 1 output (RCA)

Hardware Reset

Yes

Smart Feature

Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting

Ethernet

RJ45(10/100BASE-T)

Video Compression Format

H.265/H.264

Resolution

Main Stream @60fps
5MP(2592x1944), 4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 960P(1280*960)
Sub Stream @30fps
1080P(1920x1080)，720P(1280x720), VGA(640x480)
Mobile Stream @30fps
VGA(640x480), QVGA（320x240）

Video Quality Adjustment

256Kbps ~ 8Mbps

Bitrate control method

CBR/VBR

Streaming Capability

Triple-Stream(Main/Sub/Moile)

Protocol

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP

Web browser

IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above

Security

IP address filter; complicated password;Authenticated username and password

Streaming Method

Unicast/Multicast

Application Programming Interface

ONVIF( Profile S/G/T/M)

Operating Conditions

-35～+60°C/less than ≤ 90% RH

Ingress Protection

IP67

Input Voltage / Current

D12V/POE(IEEE802.3af)

Material

Metal

Dimensions (HxWxD)

115*91.6mm

Weight

556g
