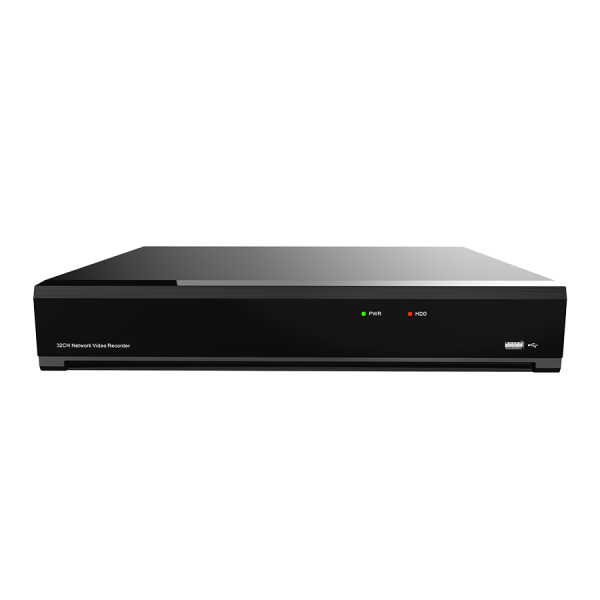

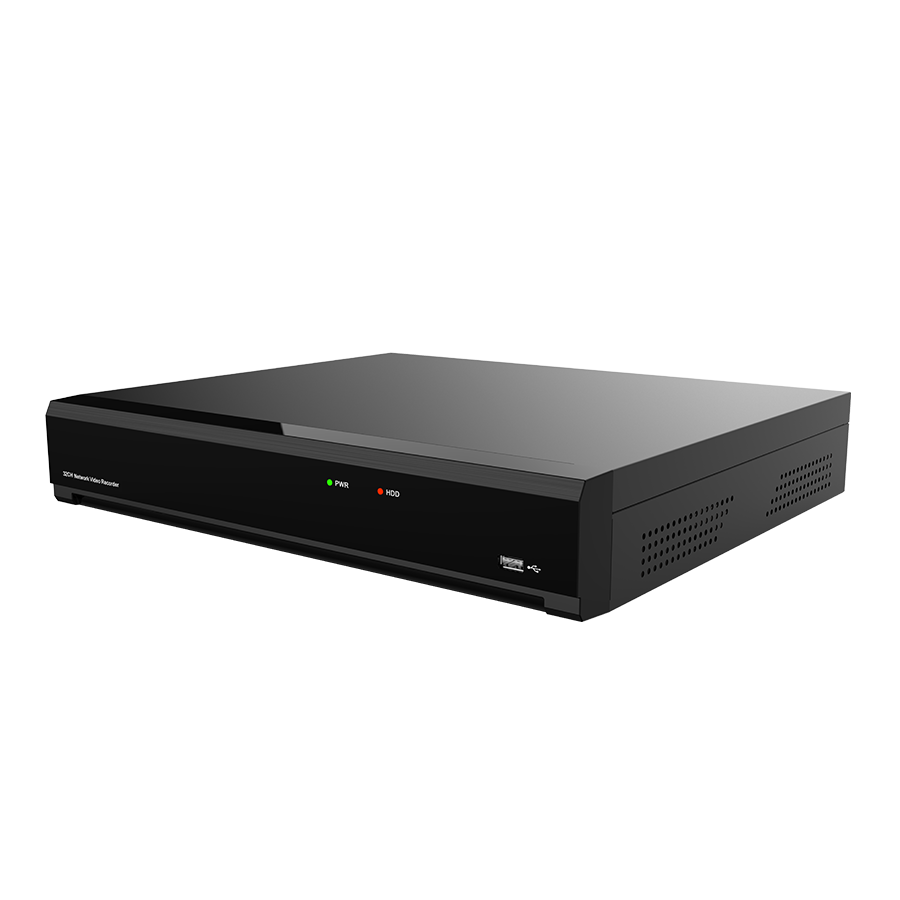

Professional 32 Channel 12 MP 4 SATA 320 Mbps NVR

  • Up to 32-Channel IP camera inputsUp to 32-Channel IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Recording Compression : 12MP:30fps 8MP:120fps 4MP:240fps 2MP:480fps Up to 320 incoming bandwidth
  • 4 SATA interfaces for HDD connection (up to 12 TB capacity per HDD) 16-ch synchronous playback
  • OSD Language: English / French / Spanish / Portuguese / German / Italian / Greek Danish / Finnish / Russia / Hebrew / Turkish / Bulgarian / Arabic Korean / Japanese / Thai / Hindi / Romanian / Dutch / Polis
  • Dimension (WxDxH): 378*326*66mm
  • Weight: 2300g
  • Power consumption (excluding hard disk): 8W
  • Operating Temperature/Humidity: Temperature :-10°C~+50°C (14°F ~ 122°F), Humidity : Less than 90%RH”

  • FCC: YES
  • CE: Yes
  • Recording Resolution: 320M
  • Recording Compression: Audio: G.711a,G.711u/Video : H.264/H.265H.264+/H.265+
  • Speed: 12MP:30fps, 8MP:120fps, 4MP:240fps, 2MP:480fps
  • Playback: 1080P:480fps / Max 16CH
  • WEB: IE10/11, Safari V12.1 above, Firefox V.52 above Google chrome V.57 above, Edge V.79 above
  • Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP SMTP, SNMP, UPnP, HTTP, HTTPS
  • API: RS API/Onvif (profile S/G/T)
  • Voice command: Home Device : Google Assistant, Amazon Alexa
  • P/W Reset: YES
  • VGA: 1 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080
  • HDMI: 1 (1024*768, 1280*720, 1280*1024, 1440*900, 1600*1200, 1920*1200, 1920*1080, 2560*1440(2K), 3840*2160(4K)1 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 /EDIDAsync out
  • Ethernet: 2 RJ45 100/1000 Base-T
  • USB: USB2.0*1(front) / USB3.0*1+USB2.0*1(rear)
  • Audio: 1 in / 1 out
  • E-sata: 1
  • HDD: 4 ,each up to 12TB
  • RS485: 1
  • Alarm Input/out: 16 in /1 out
  • Inputs Bandwidth: 320M
  • Out Bandwidth: 320M

Data Sheet: Download
