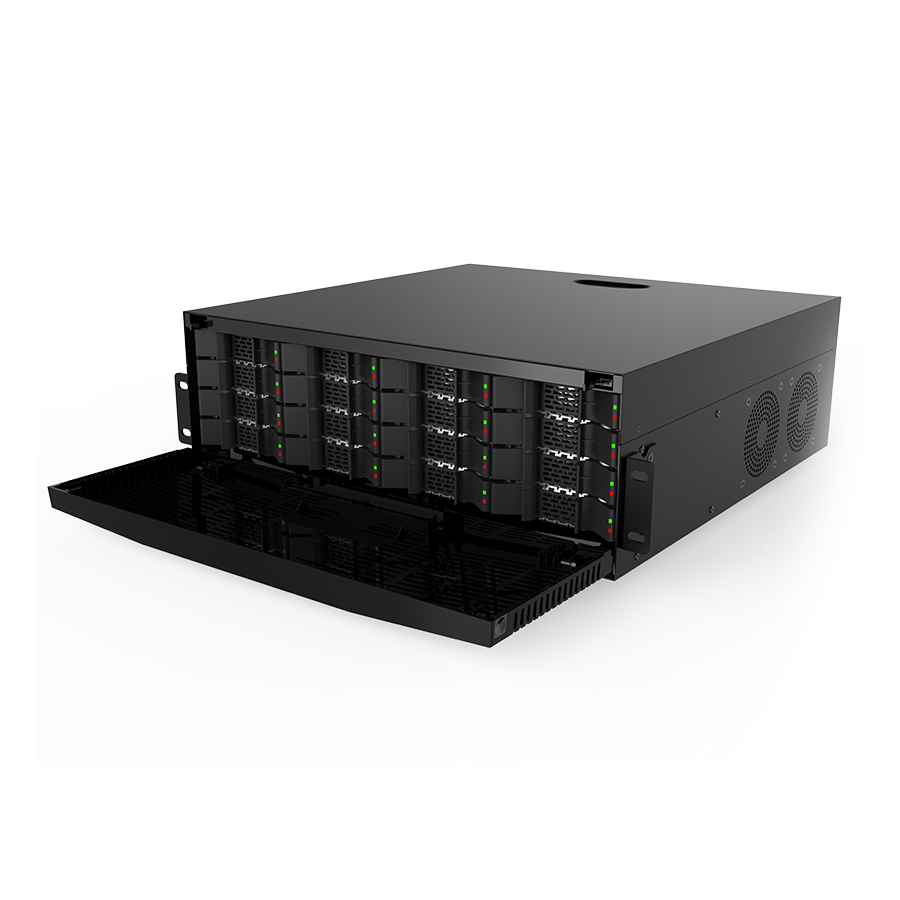

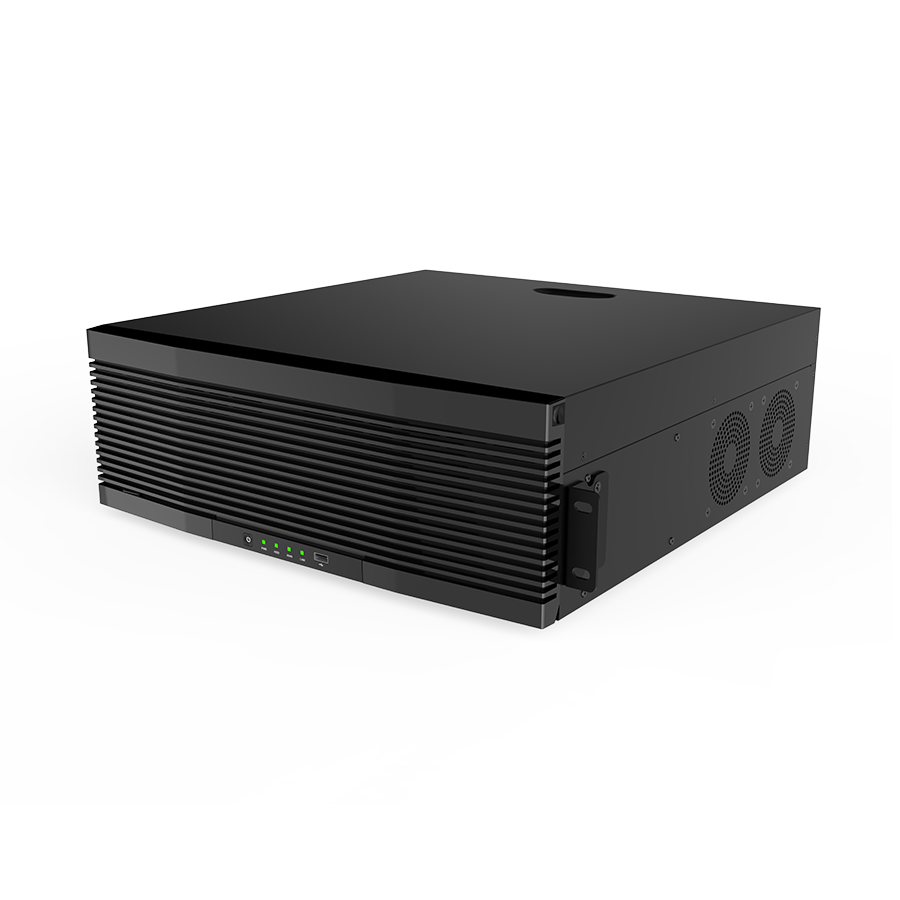

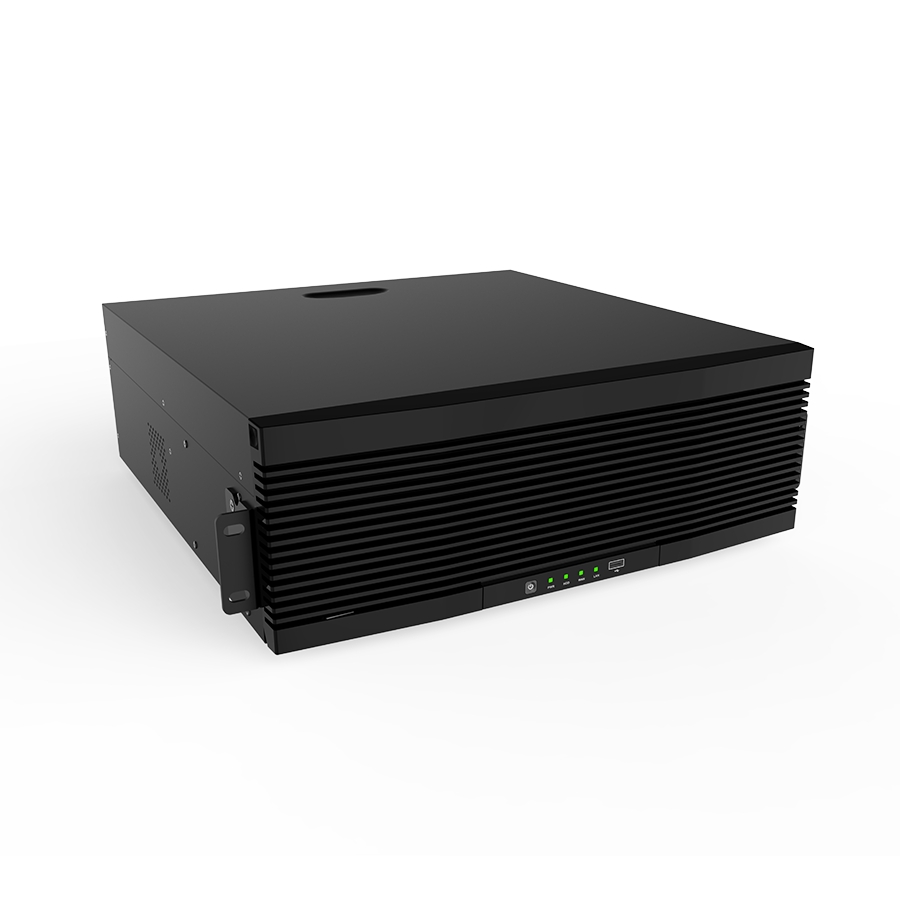

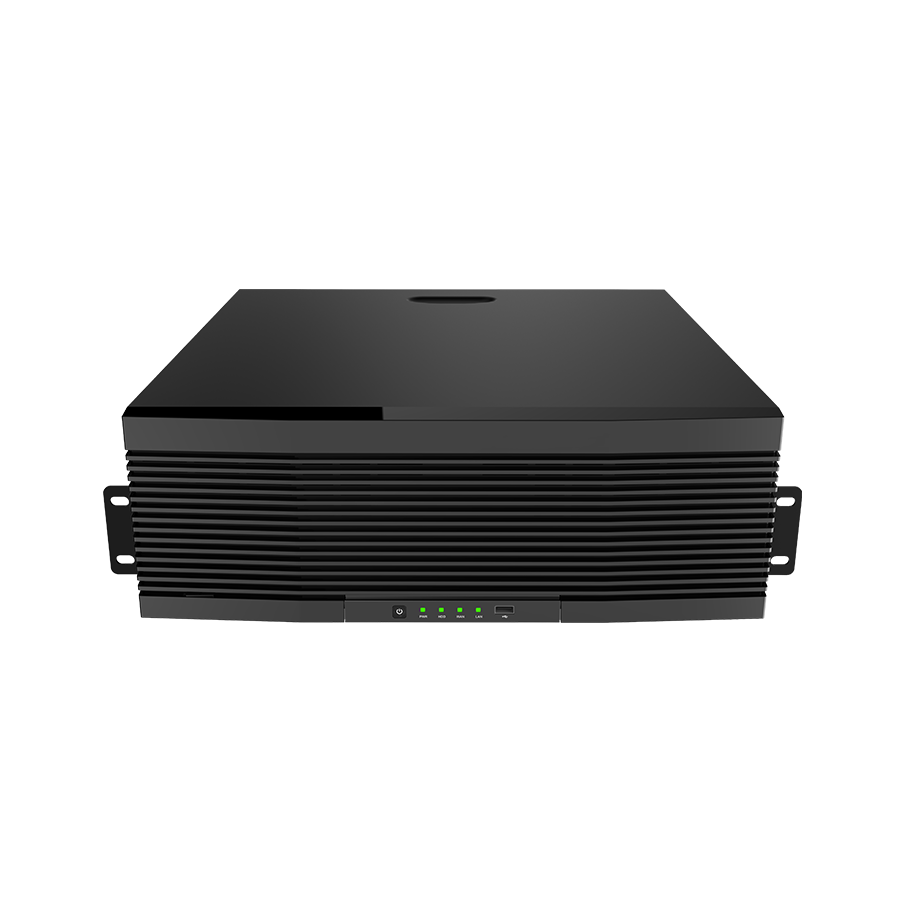

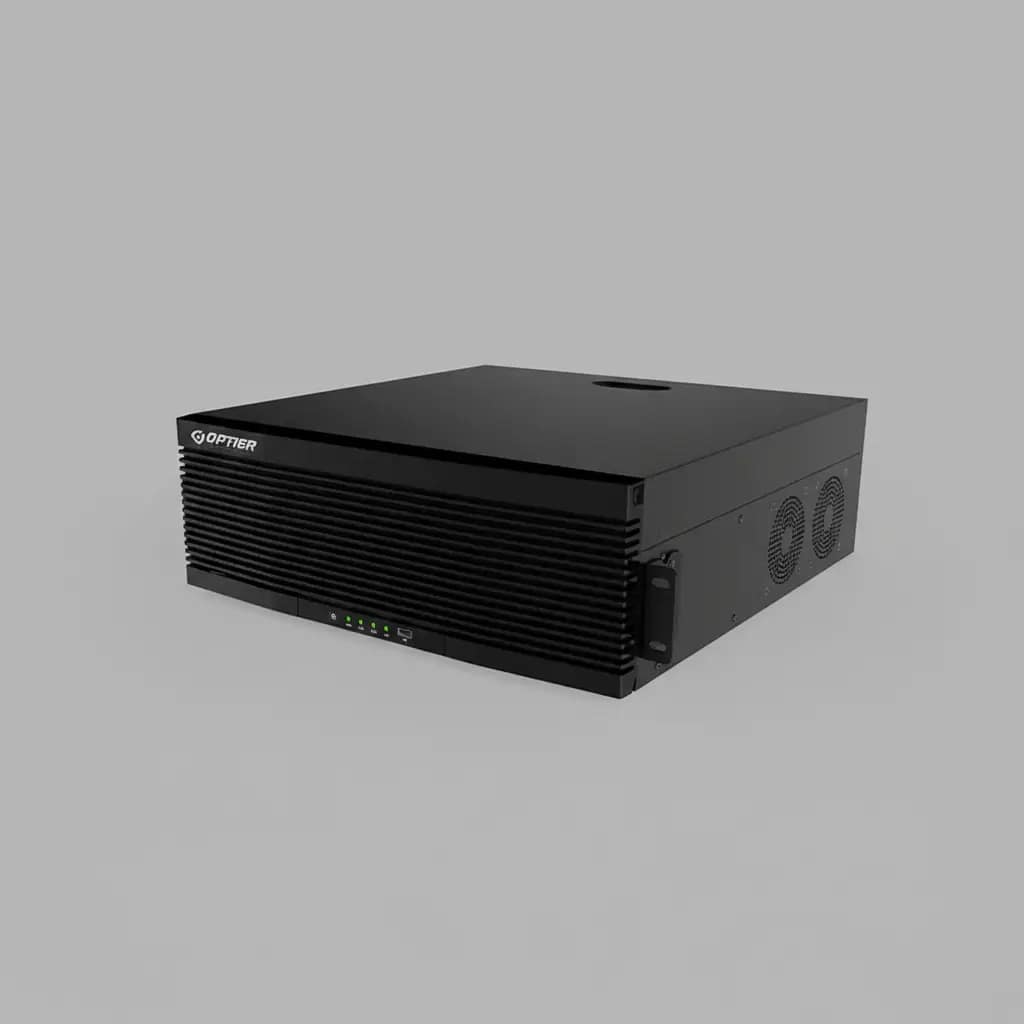

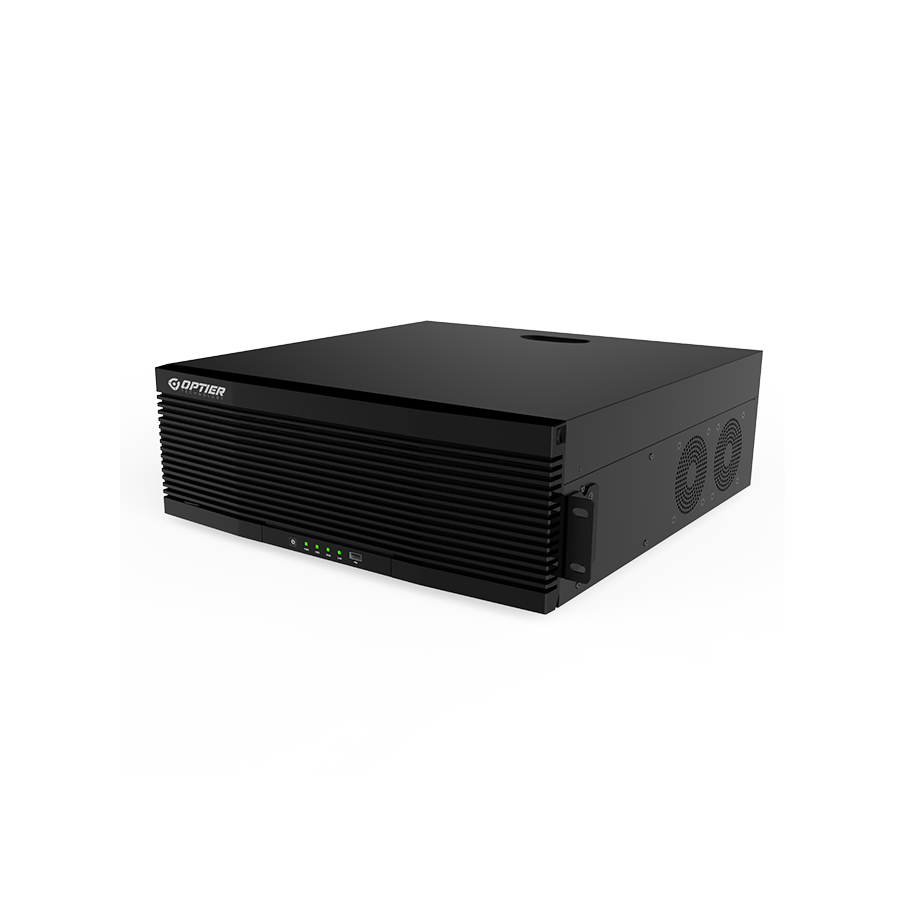

Professional 256 Channel 12 MP 16 SATA 1024 Mbps NVR

Professional 256 Channel 12 MP 16 SATA 1024 Mbps NVR
Professional 256 Channel 12 MP 16 SATA 1024 Mbps NVR - Image 2
Professional 256 Channel 12 MP 16 SATA 1024 Mbps NVR - Image 3
Professional 256 Channel 12 MP 16 SATA 1024 Mbps NVR - Image 4

Product Details

Model : OPT-256-16ST-4HD-PVR

  • Up to 256-Channel IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Recording Compression : 4K:240fps 4MP:480fps 2MP:960fps Up to 1024 incoming bandwidth
  • 16 SATA interfaces for HDD connection (up to 18 TB capacity per HDD) 16-ch synchronous playback

OSD Language

English / French / Spanish / Portuguese / German / Italian / Greek Danish / Finnish / Russia / Hebrew / Turkish / Bulgarian / Arabic Korean / Japanese / Thai / Hindi / Romanian / Dutch / Polis

Dimension (WxDxH)

440*460*149mm

Input Voltage Current

ATX 250W

Power consumption (excluding hard disk)

8W

Operating Temperature Humidity

Temperature : -10°C~+50°C (14°F ~ 122°F)
Humidity : Less than 90%RH

P/W Reset

YES

HDMI

3 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 , 1920*1080 , 1600*1200，1920*1200, 3840*2160/7680*4320/EDID Async out
If the output resolution of HDMI 1 is set to 8K, the maximum output resolution of HDMI 3 and 4 will be limited to 1080P, and HDMI 2 will be disabled.
1 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 /EDID） Async out

Ethernet

2 RJ45 1000 Base-T

USB

USB2.0*1(front) / USB3.0*2(rear)

Audio out

1

E-sata

1

HDD

16 SATA HDD, up to 18TB (Enterprise-Class)

Line in

1

RS232

1*RJ45

RS485

1

Alarm Input/out

16in /1out

Compression

Audio: G.711A /G.711U
Video : H.264/H.265/H.264+/H.265+

Frame rate

4K:240fps / 4MP:480fps / 2MP:960fps

Event

MD(Sensitivity Level 1~8)
Videlo loss
Beep, Email,
Push notification to Mobile APP

Playback Function

Fast forward / backward (2x, 4x, 8x,16x)
Slow forward (1/2x, 1/4x, 1/8x,1/16x)

Playback

Max 16CH playback

RAID Type

RAID0, RAID1, RAID5, RAID6, RAID10

Fisheye

Support

Local

UI5.0

WEB

IE10/11 / Safari V12.1 above /Firefox V.52 above
Google chrome V.57 above / Edge V.79 above

Mobile viewer

Rxcamview

Al

Face Detection, Pedestrian Detection, Vehicle Detection Cross Counting, Heat Map, Crowd Density Detection Perimeter Intrusion Detection, Line Crossing Detection Queue Legth Detection, License Plate Detection Rare Sound Detection

Resolution

12MP, 8MP, 5MP, 3MP, 2MP(1080P), 1.3MP(960P), 1.0MP(720P)

Inputs

1024M

Out

800M

Data Sheet
