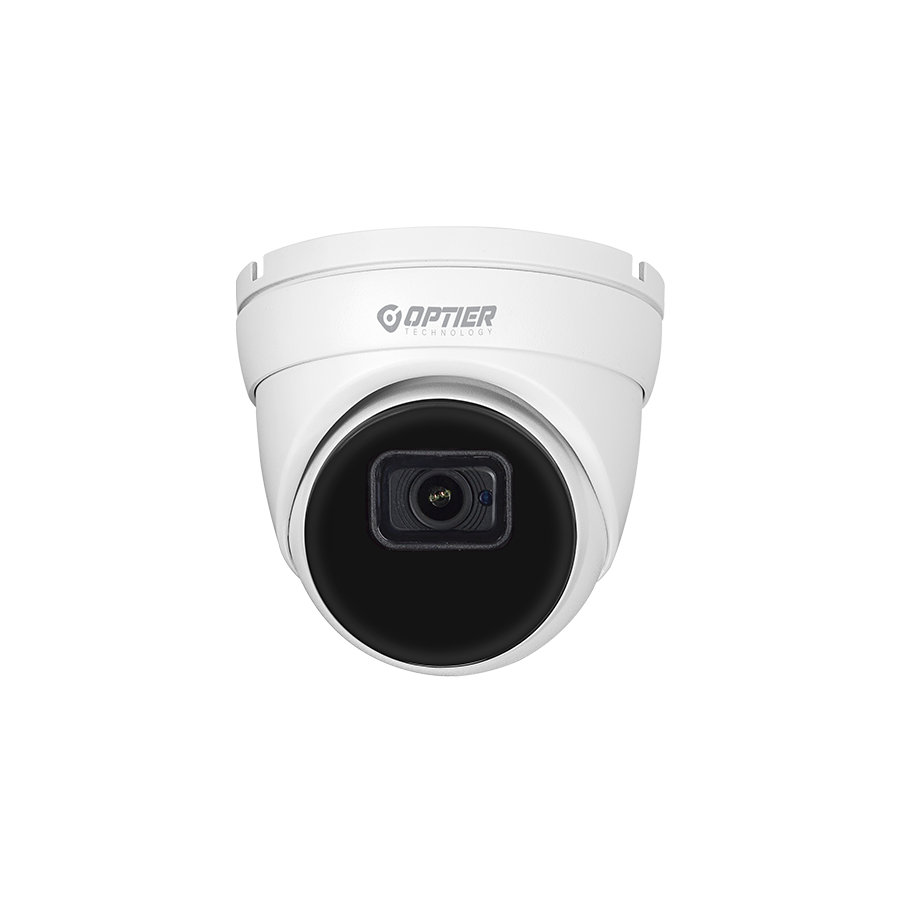

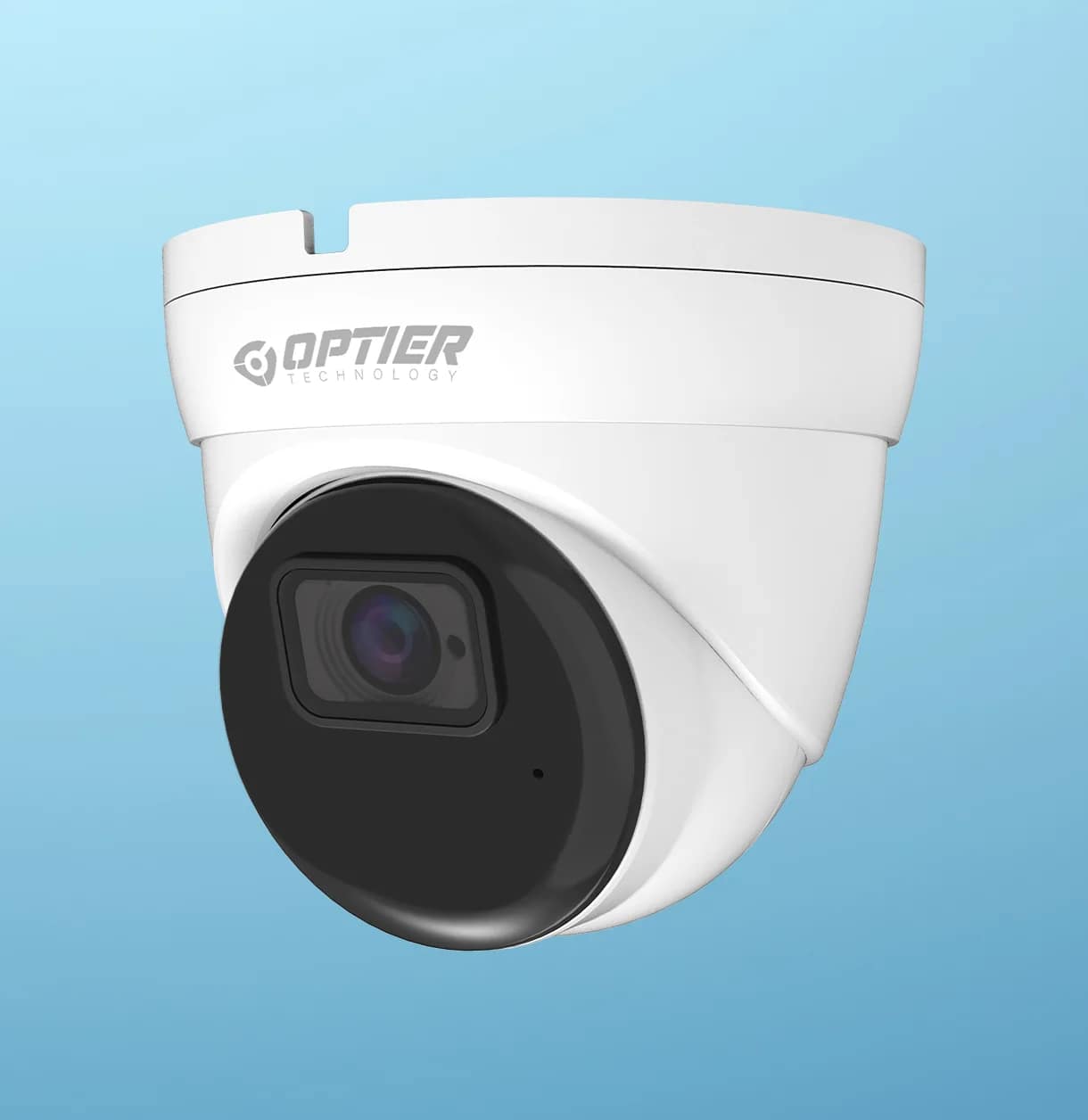

Professional 2 Megapixel 60 fps AI Metal Dome Network Camera

Professional 2 Megapixel 60 fps AI Metal Dome Network Camera

Product Details

Model : OPT-RY-2MD-3630-AI-WDR-60F

2 Megapixel High quality imaging with progressive CMOS WDR Real time Support SMART H.265/H.264 coding Up to 30M IR distance Bullet network camera

Imaging Device

1/2.8"

Effective Pixels

2MP 1920(H)×1080(V)

Scanning System

Progressive CMOS

Min. Illumination

Color 0.002lux @ F1.6(AGC ON); B/W 0 lux @ IR ON

Focal Length (Zoom Ratio)

3.6mm

Max. Aperture Ratio

F No. 1.6

Angular Field of View

Horizontal: 87°, Vertical:44°, Diagonal: 104°

Min. Object Distance

2m

Lens Type

Fixed(M12)

IR Viewable Length

Up to 30m

Camera Title

On/Off

Day & Night

IR cut filter with auto switch（Day/Night/Auto/Image/Schedule)

Backlight Compensation

Off/On (5 Zone)

Wide Dynamic Range

WDR

Digital Noise Reduction

3D DNR

Motion Detection

Off/On (8 Level)

Privacy Masking

Off/On (4 Zone, Rectangle)

Gain Control

Auto

White Balance

Auto/Manual

Electronic Shutter Speed

1/5 ~ 1/20000s

On-Board Storage

Micro SD slot, up to 256GB

Alarm

NA

Audio

Built-in microphone

Hardware Reset

Yes

Smart Feature

Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate，Rare Sound，Intrusion，Region Entrance，Region Exiting

Power

12 VDC ± 25%, 0.45 A, max. 5.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max.7 W

Material

Front cover: metal, body: metal, bracket: metal, rain cover: plastic

Dimension

Ø284.5mm × 95.8 mm

Weight

Approx. 610 g

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

Ethernet

RJ45(10/100BASE-T)

Video Compression Format

H.265/H.264

Resolution

Main Stream @60fps
1080P(1920x1080), 960P(1280x960), 720P(1280x720)
Sub Stream @30fps
720P(1280x720), VGA(640x480), QVGA(320x240)
Mobile Stream @30fps
VGA(640x480), QVGA（320x240）

Video Quality Adjustment

256Kbps ~ 8Mbps

Bitrate control method

CBR/VBR

IP

IPv6

Streaming Capability

Triple-Stream (Main/Sub/Moile)

Protocol

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP

Web browser

IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above

Security

IP address filter; complicated password; Authenticated username and password

Streaming Method

Unicast / Multicast

Application Programming Interface

ONVIF (Profile S/G/T/M)

Operating Conditions

-35～+60°C/less than ≤ 90% RH

Ingress Protection

IP67

Input Voltage / Current

D12V/POE(IEEE802.3af)

Power Consumption

DC12V：max 4.3W；POE（48V): max 5.1W

Material

Metal

Dimensions (HxWxD)

10010090mm

Weight

415g

Data Sheet
