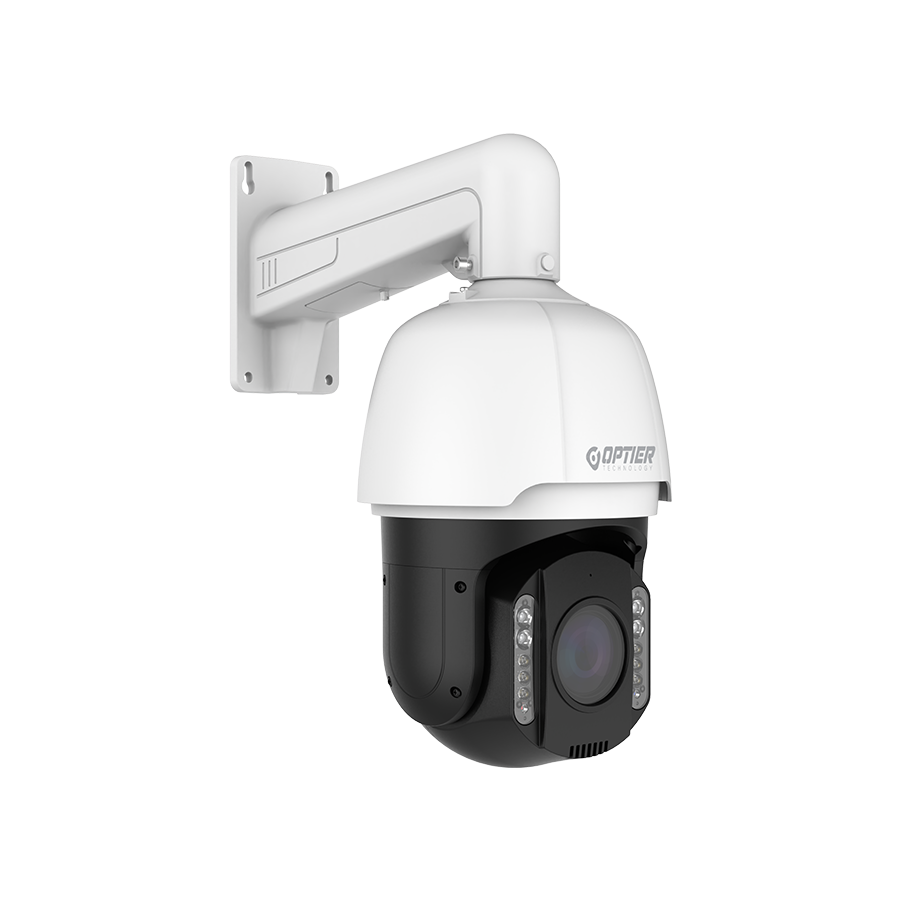

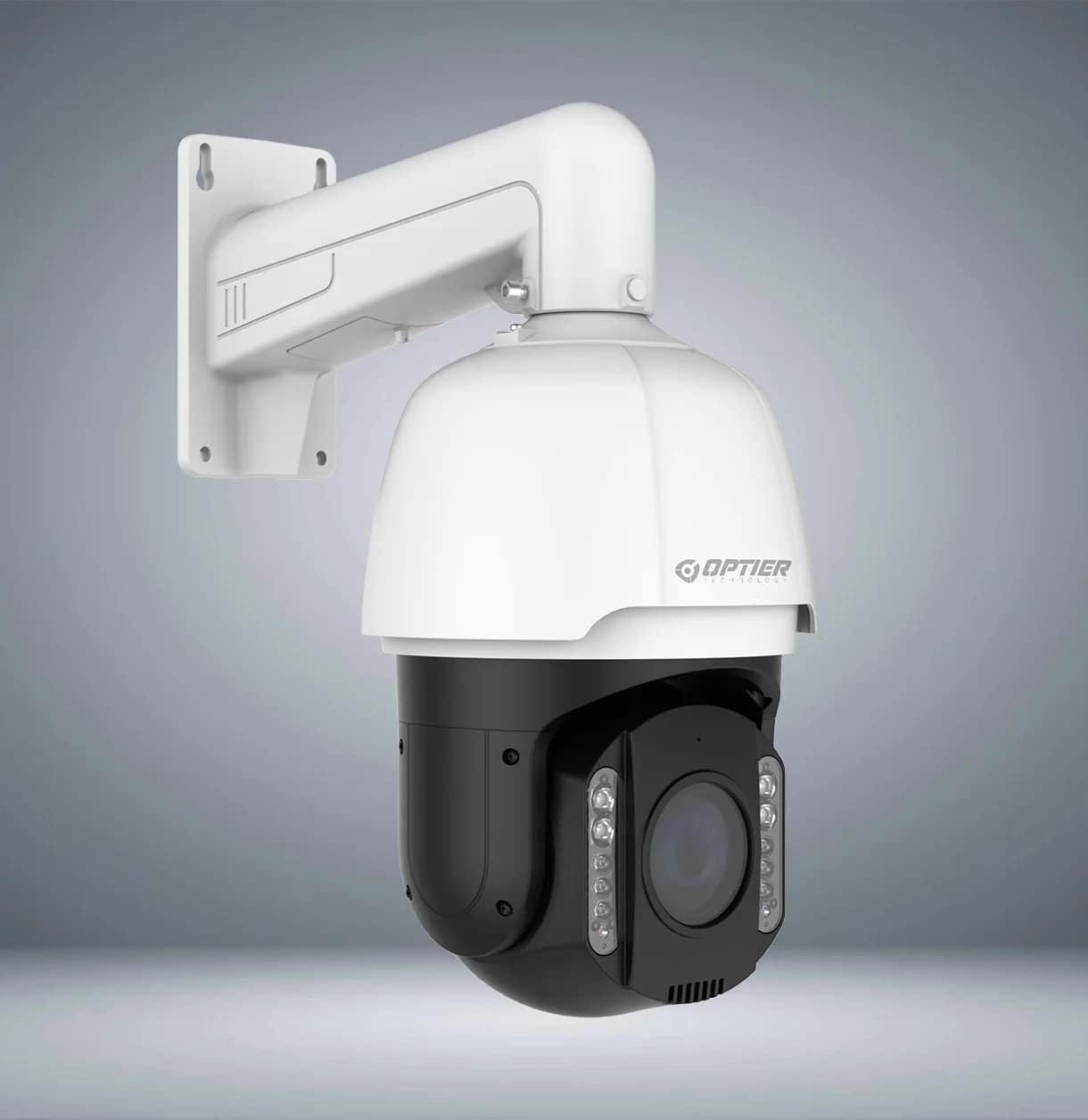

8mp IP PTZ Camera with 37x Optical Zoom And Smart AI

Product Details

Model : OPT-RY-8MPTZ-37X

1/1.8″ Progressive Scan CMOS
High-quality imaging with 8MP resolution
37x optical zoom and 16x digital zoom
Built-in Microphone and Speaker
Dual sources illumination
Deep learning algorithm
Support audio and light alarm with built in red and blue flashing light

Power

36VDC/24VAC/PoE++, max. 44.8W

Operating Condition

-30°C to 60°C (-22°F to 149°F), Humidity 90% or less (non-condensing)

Material

Metal

Dimension

ø 206.4 mm x 337.8 mm (ø 8.13" x 13.3")

Weight

Approx. 5.27 kg (11.6lb)

Image Sensor

1/1.8" progressive scan CMOS

Max. Resolution

8MP 3840(H)x2160(V)

Min. Illumination

Color: 0.0005Lux @ (F1.6, AGC ON), B/W: 0 lux with light

Shutter Speed

1/5s to 1/20000s

Day & Night

Auto Switch

Zoom

37x optical, 16x digital

Focal Length

5.5 mm to 202 mm

Angle of View

Horizontal: 60° to 2.31°; Vertical: 35.5° to 1.3°; Diagonal: 67.5° to 2.65°

Aperture

Max. F1.6

Focus

Auto, semi-auto, manual

Supplement Light Range

White light: up to 25 m, IR: up to 200m

Supplement Light Type

Hybrid (IR and White Light)

Movement Range(Pan)

360°

Movement Range(Tilt)

-20° to 90° (auto flip)

Pan Speed

configurable from 0.6° to 200°/s; preset speed: 200°/s

Tilt Speed

configurable from 0.6° to 90°/s; preset speed 100°/s

Presets

255

Patrol Scan

4 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans

Power-Off Memory

Yes

3D Positioning

Yes

Main Stream

50 Hz: 25fps(3840x2160, 3072x1728, 2592x1944, 2592x1520, 2304x1296, 1920x1080, 1280x720); 60 Hz: 30fps(3840x2160, 3072x1728, 2592x1944, 2592x1520, 2304x1296, 1920x1080, 1280x720)

Sub-Stream

50 Hz: 25 fps (1920x1080, 1280x720, 640x480, 320x240); 60 Hz: 30 fps (1920x1080, 1280x720, 640x480, 320x240)

Third Stream

50 Hz: 25 fps (640x480, 320x240); 60 Hz: 30 fps (640x480, 320x240)

Video Compression

Main stream: H.265+, H.265, H.264+, H.264, MJPEG; Sub-stream: H.265+, H.265, H.264+, H.264, MJPEG; Third stream: H.265+, H.265, H.264+, H.264

Video Bit Rate

8kbps to 16384 kbps

H.264 Type

Baseline Profile / Main Profile / High Profile

H.265 Type

Main Profile

Region Of Interest (ROI)

8

Audio Compression

G.711a/G.711u

Protocol

IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, ICMP, UDP, DHCP, PPPoE, RTPM

API

Onvif (Profile M, Profile S, Profile G, Profile T), Http API

Simultaneous

Live View Up to 14 channels

User/Host

Up to 15 users, 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, control timeout settings

Client

VMS

Web Browser

IE10/11, Safari V12.1 above, Firefox V52 above, Google Chrome V57 above, Edge V79 above

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range (WDR)

120 dB

Digital Image Stabilization

Yes

Image Settings

Saturation, brightness, contrast, sharpness, Hue and white balance adjustable by client software or web browser

Privacy

4 privacy masks

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

Alarm

1 inputs, 1 output

Audio

1 input (line in), 1 output (line out); Built-in Microphone and Speaker

Reset

Yes

RS485 Interface

Control by Joystick controller(Only used PTZ function)

Basic Event

Motion detection, video tampering alarm, alarm input and output, Sound detection

Deep Learning Function

Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Intrusion detection, Region entrance detection, Region exiting detection, License plate Recognition
