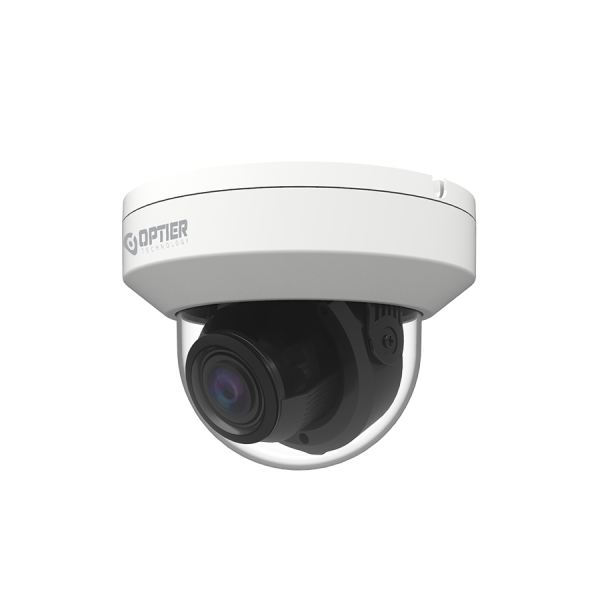

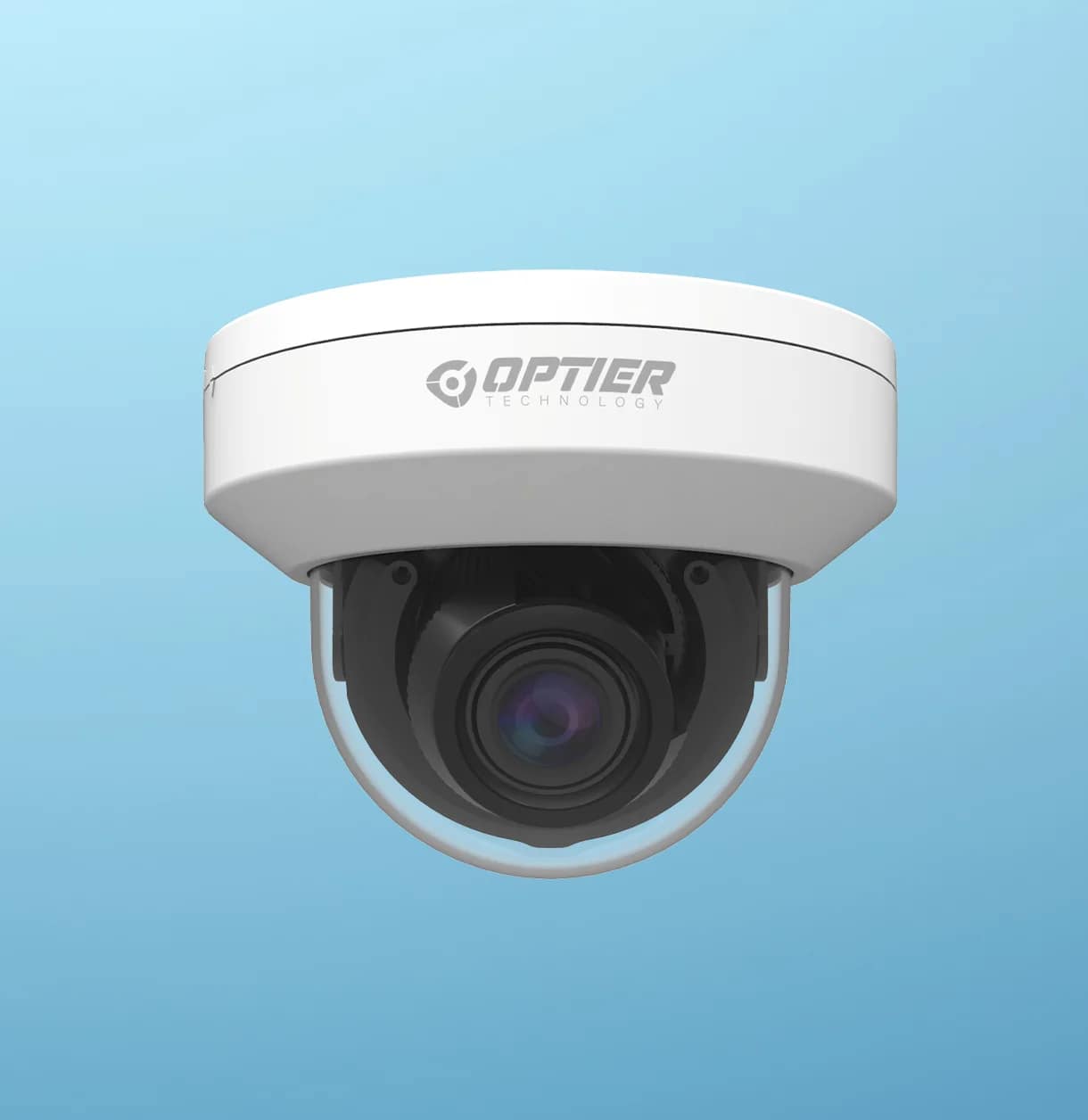

8MP 4k WDR Pro Series 25 Frame Rate Vandal Proof IP Network Camera

8MP 4k WDR Pro Series 25 Frame Rate Vandal Proof IP Network Camera

Product Details

Model : OPT-RY-8MD-3030-AI-WDR-25F

Imaging Device

1/2.7"

Effective Pixels

8MP 3840(H)×2160(V)

Scanning System

Progressive CMOS

Min. Illumination

Color 0.009lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON

Focal Length (Zoom Ratio)

2.7-13.5mm

Max. Aperture Ratio

F No. 1.8(W) ~ 3.3(T)

Angular Field of View

Horizontal:116(W)-34(T) °, Vertical: 59(W)-19(T)°, Diagonal: 142(W)-39(T)°

Min. Object Distance

0.8m(W) ~ 1m(T)

Lens Type

Motorized(Ø14)

IR Viewable Length

Up to 30m

Camera Title

On/Off

Day & Night

IR cut filter with auto switch（Day/Night/Auto/Image/Schedule）

Backlight Compensation

Off/On (5 Zone)

Wide Dynamic Range

DWDR

Digital Noise Reduction

3D DNR

Motion Detection

Off/On (8 Level)

Privacy Masking

Off/On (4 Zone, Rectangle)

Gain Control

Auto

White Balance

Auto/Manual

Electronic Shutter Speed

1/5 ~ 1/20000s

On-Board Storage

Micro SD slot, up to 256GB

Alarm

1 input, 1 output

Audio

1 input (RCA), 1 output (RCA)

Hardware Reset

Yes

Smart Feature

Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound，Intrusion，Region Entrance，Region Exiting

Ethernet

RJ45(10/100BASE-T)

Video Compression Format

H.265/H.264

Resolution

Main Stream
8MP(3840x2160), 5MP(2592x1944,3072x1728), 4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 960P (1280*960), 720P(1280x720),
Sub Stream
1080P(1920x1080)，720P(1280x720), VGA(640x480)
Mobile Stream
VGA(640x480), QVGA（320x240）

Video Quality Adjustment

256Kbps ~ 16Mbps

Bitrate control method

CBR/VBR

Streaming Capability

Triple-Stream (Main/Sub/Moile)

Protocol

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP

Web browser

IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above

Streaming Method

Unicast / Multicast

Application Programming Interface

ONVIF (Profile S/G/T/M)

Operating Conditions

-35～+60°C/less than ≤ 90% RH

Ingress Protection

NA

Input Voltage / Current

D12V/POE(IEEE802.3af)

Power Consumption

4W-5W

Material

Plastics

Dimensions (HxWxD)

150*109mm

Weight

451g

Data Sheet
