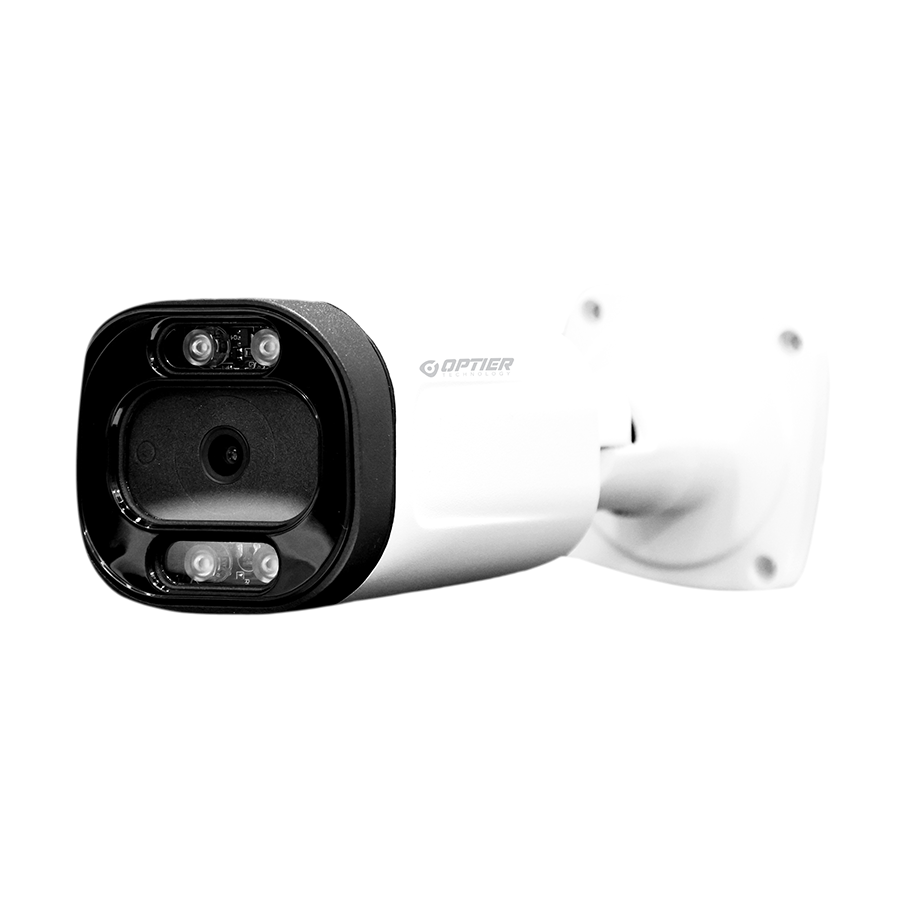

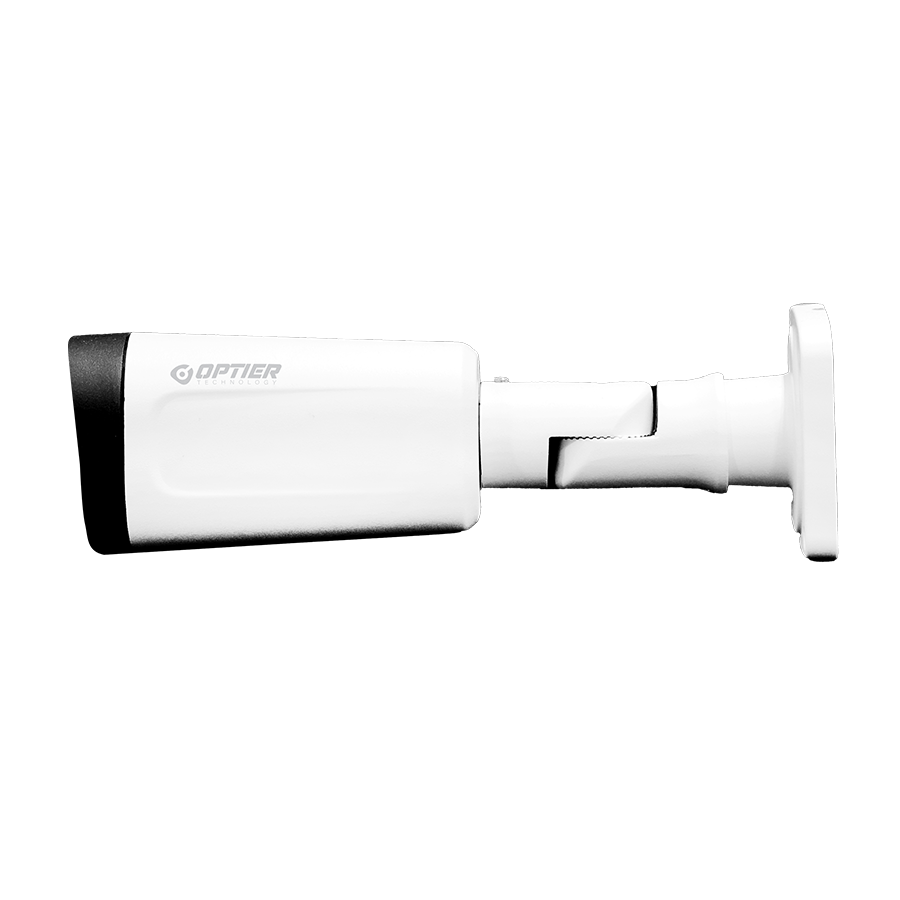

8MP 4K Smart 8 MM Dual Light POE With Mic Bullet Network Camera

• Power: 12 VDC ± 25%, 0.45 A, max. 5.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max.7 W
• Material: Front cover: metal, body: metal, bracket: metal, rain cover: plastic
• Dimension: Ø185.4 mm × 85.3 mm
• Weight: 530 g
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Resolution: 3840 × 2160
• Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time: 1s to 1/100,000s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens Type: Fixed focal lens, 8 mm
• Focal Length & FOV: 8 mm, horizontal FOV 106.8°, vertical FOV 56.4°
• Lens Mount: M10
• Iris Type: Fixed

• Supplement IR Type: White Light, IR
• Supplement IR Range: Up to 40 m
• Smart Supplement Light: Yes
• Aperture: 0
• Main Stream: 50 Hz:
  25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  60 Hz:
  24 fps (3840 × 2160)
  30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Third stream is supported under certain settings.
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Third stream is supported under certain settings.
• Video Bit Rate: 32 Kbps to 16 Mbps
• 264 Type: Baseline Profile, Main Profile, High Profile
• 265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): 264 and H.265 encoding

• Audio Type: -2U: Mono sound
• Audio Compression: -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)”
• Audio Sampling Rate: -2U: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering: -2U: Yes

• Protocols: 1*RJ45 Ethernet interface, 10/100M self-adaption, 8KV anti-static electric capacity; support RTSP/DHCP/NTP, GB/T28181, compatible ONVIF and so on network protocols
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users
  3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Web Browser: Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+

• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR, Distortion Correction, Defog
• SNR: ≥ 52 DB
• Wide Dynamic Range (WDR): 130 DB
• Image Stabilization: EIS
• Privacy Mask: 4 programmable polygon privacy masks

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Audio: Built-in Microphone: -2U: Arrayed dual-microphone

• Basic Event: Motion detection , video tampering alarm, exception
• Smart Event: Scene change detection

Data Sheet: Download
