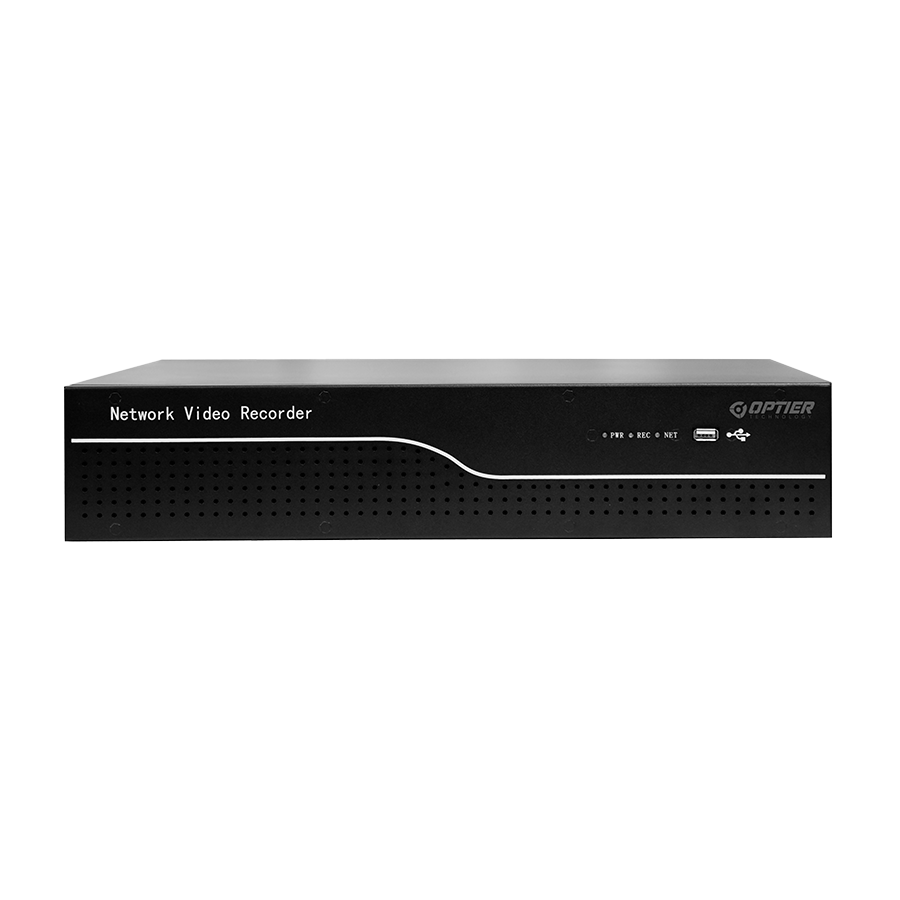

Model : OPT-64-8STVR-AI
The most easy-to-use,popular and commercial 64 channel embedded NVR;specially design for store, small warehouse, office and family,access HD IPC,provide preview, recording, forward and so on functions. Support mobile phone monitoring, traversal service,achieve APP seconds connection for preview and remote recording playback, support various network modes:
- IPC—-NVR—- Seetong Cloud—-Seetong Client
- IPC—————–NVR————Seetong Client
- IPC—-NVR—- Seetong Cloud—-Seetong APP
General
- Storage: 8*SATA hard disk interface, support 18TB capacity;
Support timing video recording, face, license plate, human shape, vehicle shape, high-altitude parabolic, motion detection, IO alarm linkage video recording;
Support external USB storage devices (such as ordinary U disk, mobile hard disk) backup; - User: Local maximum support for 38 users;
- Front Panel: Support three status indicators of power supply, video recording and network; 1*USB2.0 interface;
- Working Temperature: -10℃ ~ +55℃
- Working Humidity: 10% ~ 90%
- Weight and size: size 190.5*190.5*46mm (W*D*H), weight 5700g;
- Others: AC 100～240V(50/60Hz) A TX power input; host power consumption＜8W(Hard disk not included);Support lightning protection and anti-static;
Perfomance
- Business Functions: Support preview/recording/forward/remote service, support alarm linkage, support Seetong client remote control software; support seetong cloud service;
- Image Sensor: Embedded LINUX design, pure hardware decode, watchdog, hard disk storage, HDMI HD display, IP network video access.
- Audio: Supports a 4-pin 3.5mm audio input/output jack; Supports a 3.5mm audio input jack with 3pin pins;
Standard G.711, support audio and video recording,support HDMI output channel preview and playback audio and video, Seetong client audio and video preview and playback;

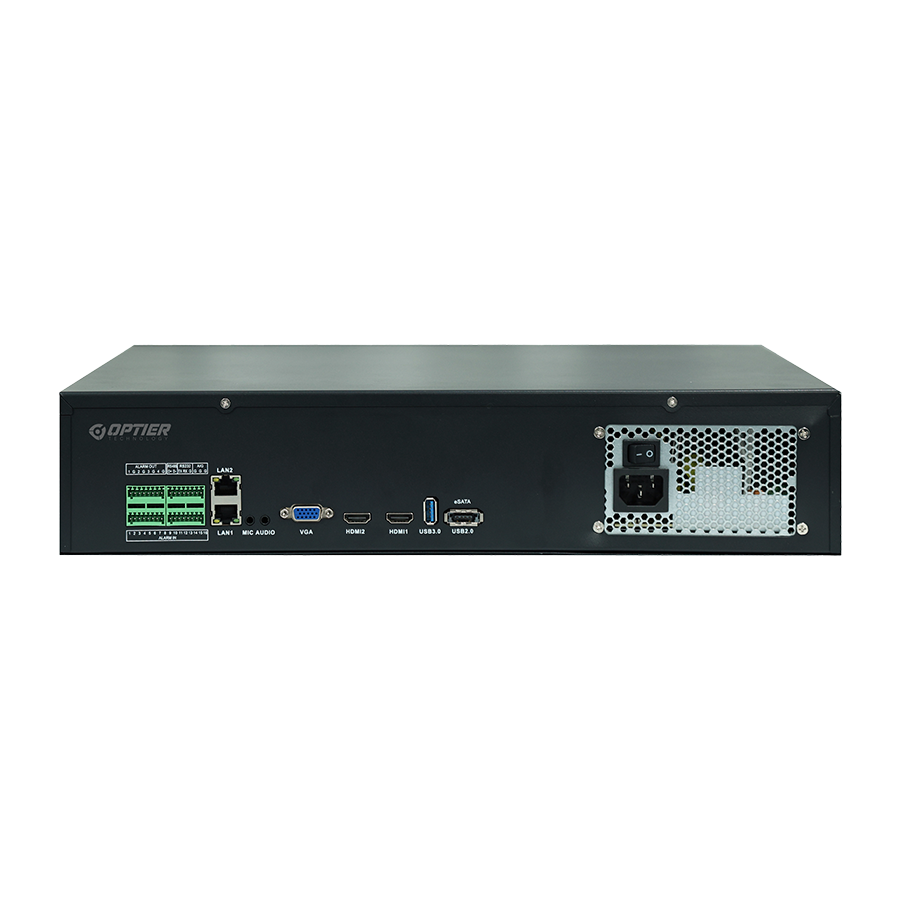

Interface
- Network Interface: 2*RJ45 Ethernet interface, support 10/100/1000M self-adaption; support TCP/IP, IPv4, DHCP, NTP, RTSP, P2P, SMTP, GB28181 and so on protocols;
- Peripheral Interface: 1*RS485 interface, support PELCO protocol rocker PTZ control keyboard;1*232 serial interface;1*USB3.0 interface;1*esata interface (supports USB2.0);support for the mouse, USB upgrade, import and export;
- Alarm Interface: 16 channel switch input, supporting alarm input;4-way relay output, supporting siren/alarm;
Video
- Video Output: 1 channel VGA output; support 1920×1080, 1440×900, 1366×768, 1280×1024, 1280×800, 1024×768 resolution output show;
2 channel HDMI output:
HDMI1 support 3840×2160, 2560×1440, 1920×1080, 1440×900, 1366×768, 1280×1024, 1280×800, 1024×768 resolution output show;
HDMI2 homology with VGA,support 1920×1080, 1440×900, 1366×768, 1280×1024, 1280×800, 1024×768 resolution output show;
When HDMI2 and VGA are connected at the same time, only HDMI2 output display;
Support Seetong client preview,APP preview and seconds connection
1/2/4/6/8/9/10/16/24/25/36/64 pictures real time preview; - Video Input: HD IPC access, each channel support dual stream access, support auto search, add, recording,
Preview and without debugging;
Access bandwidth 320Mbps - Video Capacity: Support H.265+/H.265/H.264 decoding;
NVR local recording playback support 4CH (4K@30fps) ; See tong client recording playback support 4 channels. - Video Recording Resolution: Support 720P/960P/1080P/3MP/4MP/5MP/4K;
