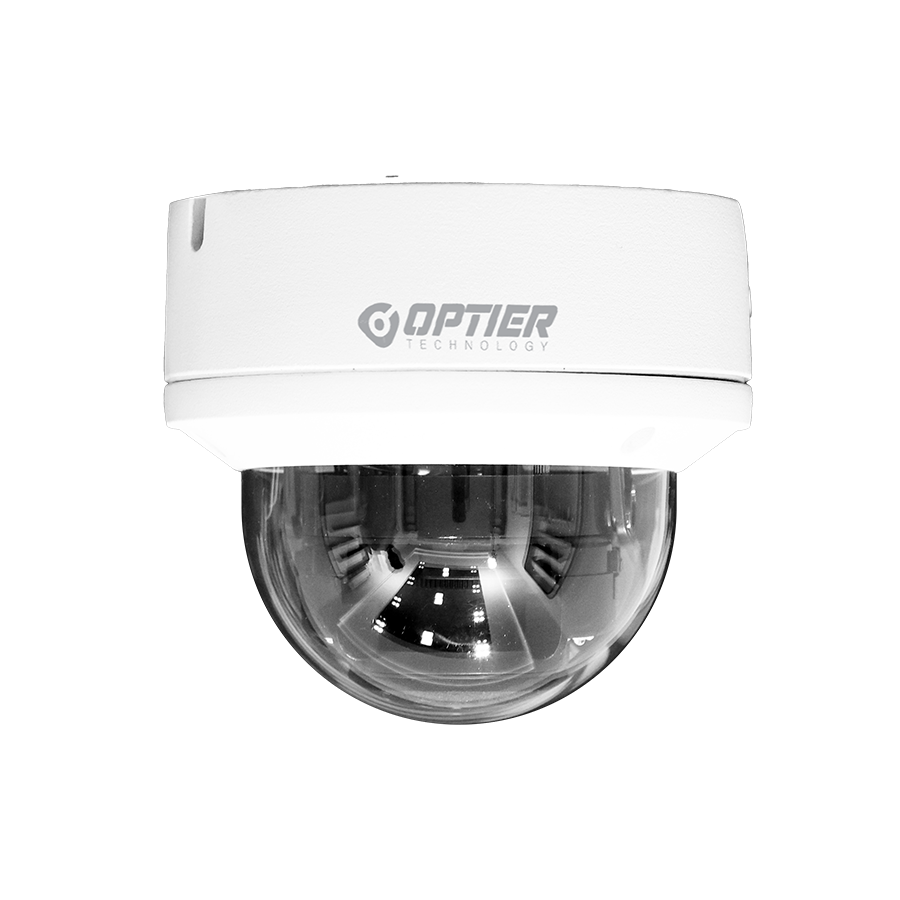

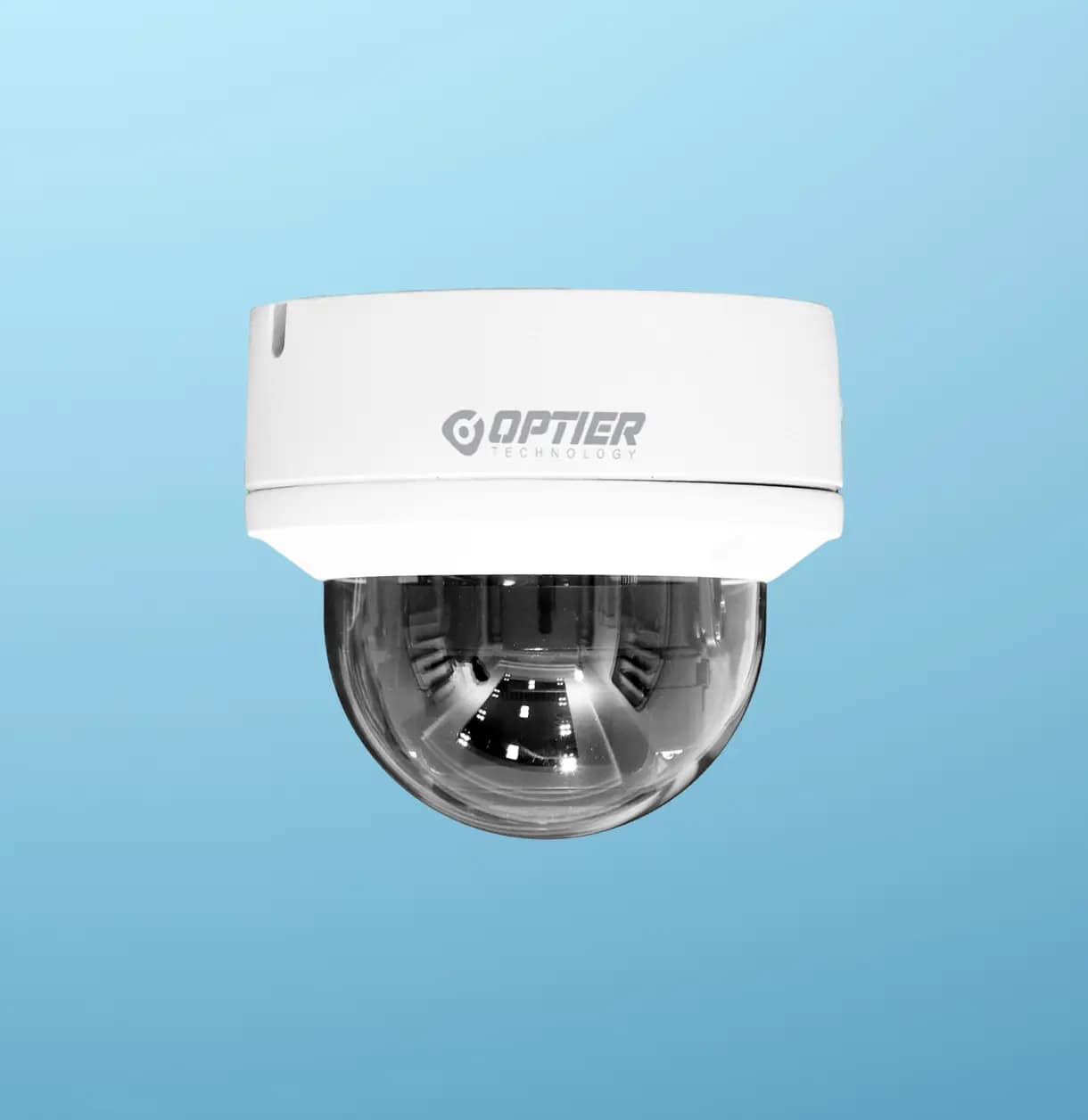

5MP Smart 5X Zoom Vandal Proof Camera AI

5MP Smart 5X Zoom Vandal Proof Camera AI

Product Details

Model : OPT-SE-5MWD25-5X-AI

Power Supply

12V DC, POE (IEEE 802.3af, Class 3)

Max. Power Consumption

≤8 W (12V DC), ≤9 W (POE)

Working Temperature

-40 °C ~ 65 °C

Working Humidity

≤95% RH (non-condensing)

Ingress Protection

IP67

Vandal Resistant

IK10

Extra corrosion resistance coating

Supported (Optional)

Surge Protection

TVS4000V

Reset Button

Supported

Dimensions

Φ143×123 mm

Net Weight

0.95 Kg

Max. Resolution

1/1.8" Progressive Scan CMOS

Video Compression

Enhanced (H.265, H.264), H.265, H.264, MJPEG

Frame Rate

Main Stream:
(2592×1944, 2592x1520, 2560×1440, 2304×1296) @ 25/30fps, (1920×1080, 1280×720) @ 50/60fps,
Sub Stream:
(704×480, 704×240, 640×360, 352×240) @ 30fps, (704×576, 704×288, 640×360, 352×288) @ 25fps
Third Stream:
(1920×1080, 1280×720, 640×360, 704×480, 704×240, 352×240) @ 30fps, (1920×1080, 1280×720, 640×360, 704×576, 704×288, 352×288) @ 25fps

Stream Settings

i-Frame, PAL/NTSC, Frame Rate, SVC

EIS

Supported

Video Bit Rate

32 kbps ~ 16 Mbps

Bitrate Type

CBR, VBR

Image Settings

Brightness, Contrast, Saturation, Hue, Sharpness, Rotation/Mirror, Gain, Exposure, Day/Night

White Balance

Auto, Semi Auto, Sunshine, Daylight, Warm Light, Filament, Nature Light, Lock WB, Manual

Corridor Mode

Supported

HLC

Supported

BLC

Supported

OSD

Up to 5 regions

OSD Type

Title, Week, Date, Time, Text with different colors and adaptable sizes (16×16, 32×32, 48×48, 64×64, 96x96), Image overlay

ROI

Up to 8 regions

Privacy Mask

Up to 4 regions

Heatmap

Supported

Protocols

TCP/IP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, FTP, NFS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, RTMP, PPPoE, NTP, UPnP, SMTP, SSL, TLS 1.2, IGMP, 802.1X, QoS, Unicast, Multicast, ARP, SNMP, SRTP, SFTP, P2P

Security

AES 128 Video Encryption, IP Filter, User Authentication (Multiple Privilege Level), 802.1X Authentication (EAP-MD5), HTTPS Authentication, Digest Authentication, User Access Log

Compatibility

ONVIF Profile (S, G, T, M), SDK/API/CGI

Network

1 x RJ45 10M/100M Self Adaptive Ethernet Port

Alarm I/O

2-Jan

Alarm Voltage

Input (switch type) , Output (3.3V-12V, 10 ohm)

Serial Interface

1xRS485

USB

N/A

Edge Storage

MicroSD card slot, up to 512 GB

ANR

Supported

Cable Interface

Pig Tail

Remote Connection

≤7

Web Language

15

Client Application

EyeConnect

Audio Compression

G.711A, G.711U, ADPCM_D, AAC_LC

Audio Bit Rate

-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

8 kbps, 32 kbps, 48 kbps

Audio I/O

1-Jan

Audio Voltage

Input: Level 5V, Input Impedance 1500 ohms
Output: Level 3V, Output Impedance 100 ohms

Built-in Mic

Supported with noise cancellation

Alarm Management

Motion Detection, Tampering (Masking), Input & Output Event, IP & MAC Address Conflict, Disk Alarm (Full & R/W Error), FTP Server Exception, Abnormal Voltage, Pre/Post Alarm Recording, Alarm Recording/Snapshot

Alarm Notification

E-mail (Notification and Snapshot), HTTP (Alarm Icon), FTP (Snapshot and Recording), SD Card (Recording)

Lens

2.7 ~ 13.5 mm

Detection

56.0 ~ 240 m

Observation

22.0 ~ 95.0 m

Recognition

11.0 ~ 48 m

Identification

5.6 ~ 24.0 m

Image Sensor

1/2.8" CMOS Progressive 5.0 MegaPixel

Day/Night

IR Cut Filter with Auto Switch

Lens Type

Motorized

Focal Length

2.7 ~ 13.5 mm

Focus

Auto / Manual

Iris Type

DC Auto Iris

Lens Mount

Φ14

Angle of View (H)

98.3° ~ 32.2°

Angle of View (V)

54.9° ~ 18.2°

Angle of View (D)

125.6° ~ 37.0°

Angle Adjustment

Pan 0~330°, Tilt 0~75°, Rotate 0~350°

Aperture

F1.6 ~ F3.3

Electronic Shutter

1s ~ 1/100,000s, Auto / Manual

Min. Illumination

Color: 0.001 lux @ F1.6, B/W: 0 lux with IR

AGC

Auto / Manual

Digital Noise Reduction

3D DNR

S/N Ratio

≥60 dB

Defog

Smart Defog

WDR

120 dB

Smart IR

Up to 30 m

IR LEDs

12

Wavelength

850 nm

Data Sheet
