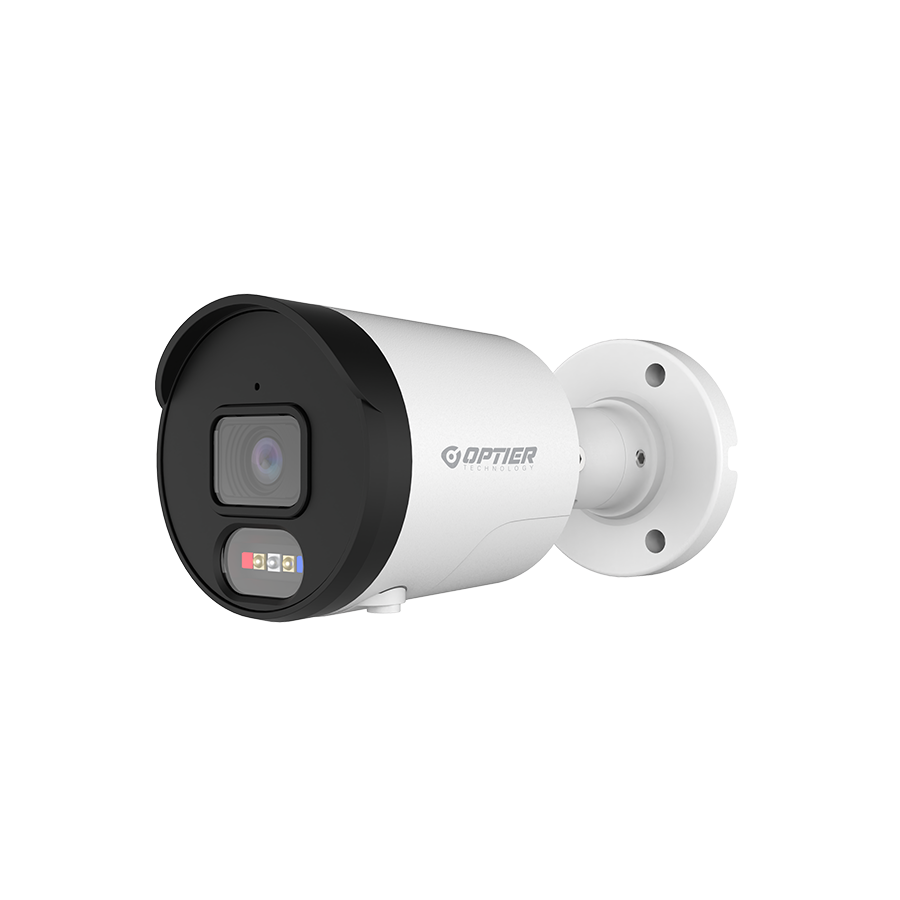

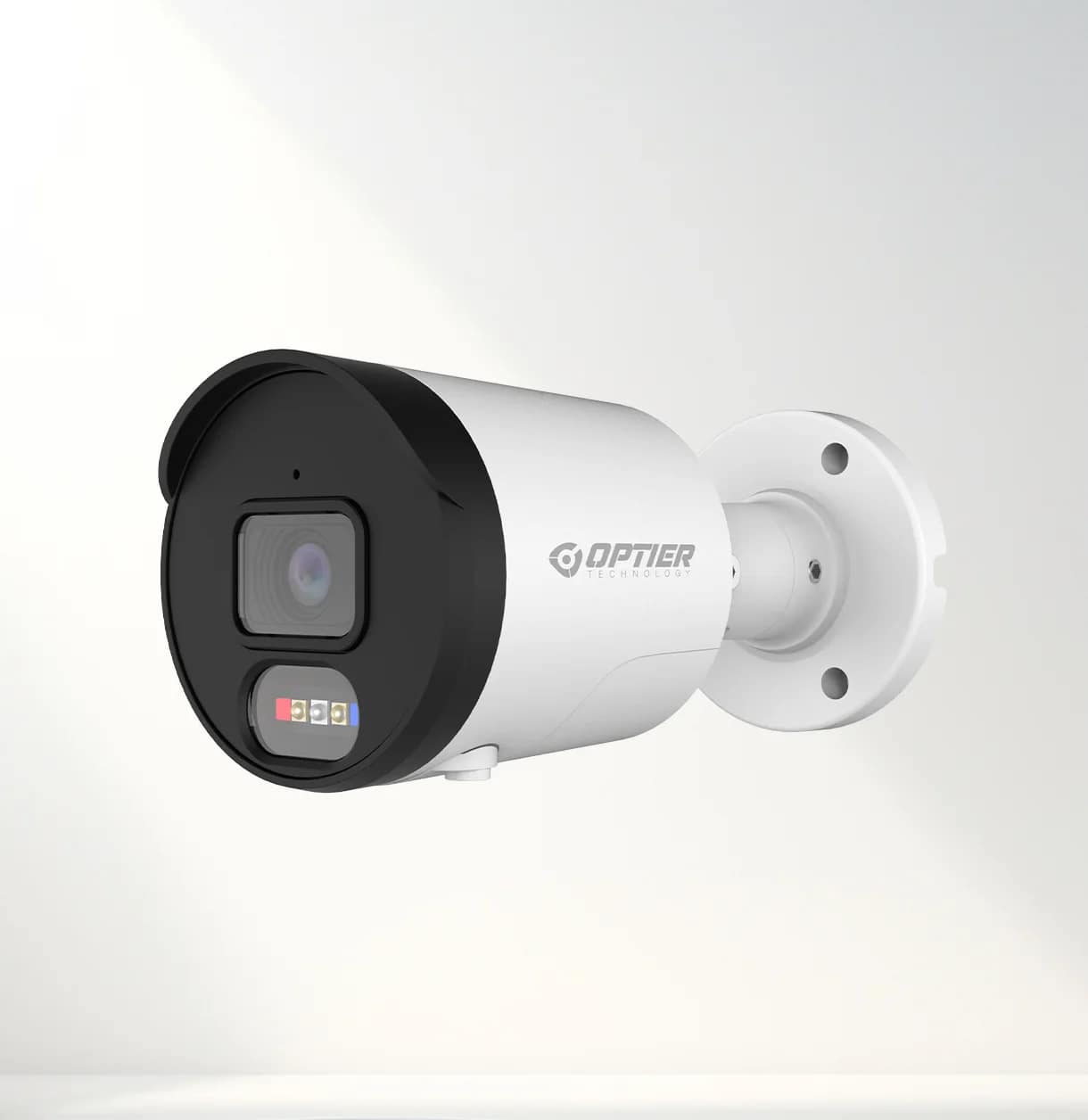

Model : OPT-RY-5MB-3630C
Video
- Imaging Device: 1/2.7″
- Effective Pixels: 5MP 2880(H)x1620(V)
- Scanning System: Progressive CMOS
- Illumination: Color 0.002lux @ F1.0(AGC ON); B/W 0 lux @ IR ON
Lens
- Focal Length (Zoom Ratio): 6mm
- Aperture Ratio: F No. 1.0
- Angular Field of View: Horizontal: 88°, Vertical:48°, Diagonal: 108°
- Object Distance: 2m
- Lens Type: Fixed(M12)
Operational
- IR LED: 1
- WarmLight: 2
- Red Blue Light: 2(1 Red&1 Blue）
- IR Viewable Length: Up to 25m
- WarmLight Viewable Length: Up to 20m
- Type of complementary light: Default warm light, switchable infrared light
- Motion Detection: Off/On (8 Level)
- Wide Dynamic Range: WDR
- Digital Noise Reduction: 3D DNR
- Image Setting: Full Color Mode / Day&Night Mode / Smart IIIumination
- White Balance: Auto/Manual
- Electronic Shutter Speed: 1/5 ~ 1/20000s
- On-Board Storage: Micro SD slot, up to 256GB
- Alarm: NA
- Audio: Built-in microphone&Speaker
- Custom Voice: Yes
- Hardware Reset: Yes
- Smart Feature: Face Detection, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting
Network
- Ethernet: RJ45(10/100BASE-T)
- Video Compression Format: 265/H.264
- Resolution: Main Stream@30fps
5MP(2880×1620), 4MP(2560X1440) 3MP(2304×1296), 1080P(1920×1080) 720P(1280×720)
Sub Stream@30fps
720P(1280×720), VGA(640×480),QVGA(320×240)
Mobile Stream@30fps
VGA(640×480), QVGA（320×240） - Video Quality Adjustment: 256Kbps ~ 8Mbps
- Bitrate control method: CBR/VBR
- IP: IPv6
- Protocol: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
- Web Viewer: IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
- Security: IP address filter; complicated password; Authenticated username and password
- Application Programming Interface: ONVIF (Profile S/G/T/M)
- Environmental Operating Conditions: -35～+60°C/less than ≤ 90% RH
- Ingress Protection: IP67
- Electrical Input Voltage / Current: D12V/POE(IEEE802.3af)
- Power Consumption: DC12V：max 5.8W；POE（48V): max 7.0W
- Mechanical Material: Metal&Plastics
- Dimensions (HxWxD): 3*70.1mm
- Weight: 282g
