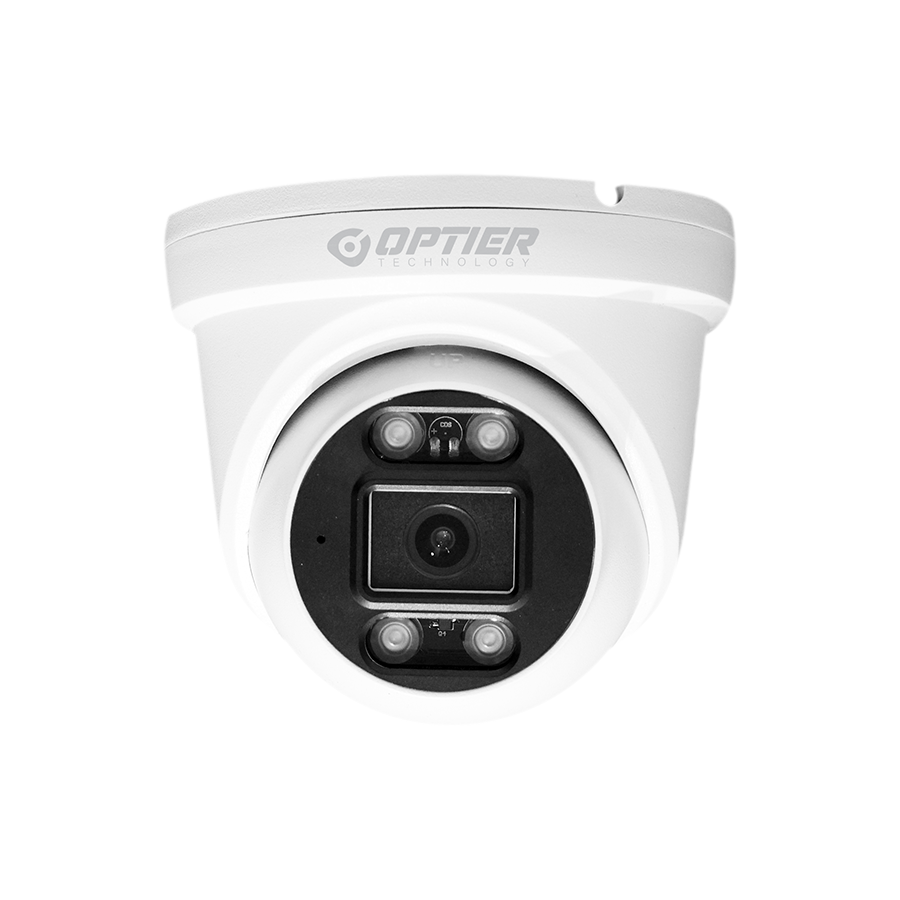

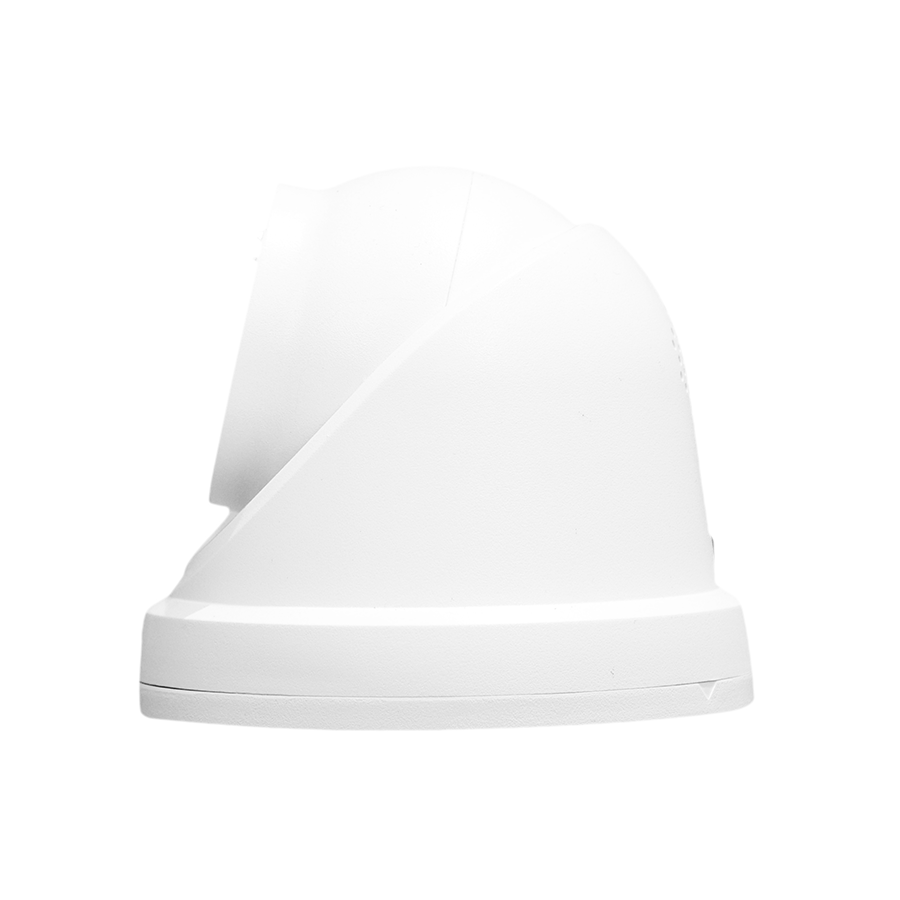

4K Smart Hybrid Network Dome Camera-8MD3630D2

Product Details

Model : OPT-HS-8MD3630D2

High quality imaging with 8 MP resolution
Clear imaging against strong back light due
Efficient H.265+ compression technology
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67)

Power

12 VDC ± 25%, 0.66 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W

Material

Base: aluminum alloy, cover: aluminum alloy

Dimension

Ø86.2 mm × 74.5 mm

Weight

Approx. 415 g

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone

-U: Yes

Audio

-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Image Sensor

1/1.8" Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Iight

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens Type

Fixed focal lens, 2.8 mm

Focal Length & FOV

2.8 mm, horizontal FOV 120.1°, vertical FOV 60.4°

Lens Mount

M10

Iris Type

Fixed

Aperture

F1.0

Audio Type

-U: Mono sound

Audio Compression

-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

Audio Sampling Rate

-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

-U: Yes

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, Adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

SNR

≥ 52 dB

Wide Dynamic Range (WDR)

130 dB

Privacy Mask

4 programmable polygon privacy masks

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Web Browser

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Supplement IR Type

IR, White light

Supplement IR Range

Up to 30 m

IR Wavelength

850 nm

Main Stream

50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264,
*Third stream is supported under certain settings."
