Power: 12 VDC ± 25%, 0.66 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W
Material: Base: aluminum alloy, cover: aluminum alloy
Dimension: Ø86.2 mm × 74.5 mm
Weight: 415 g
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Supplement IR Type: IR, White light
Supplement IR Range: Up to 30 m
IR Wavelength: 850 nm
Main Stream: 50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression: Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264,
*Third stream is supported under certain settings.”
Video Bit Rate: 32 Kbps to 16 Mbps
264 Type: Baseline Profile, Main Profile, High Profile
265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding (SVC): 264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio Type: -U: Mono sound
Audio Compression: -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: -U: Yes

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host: Up to 32 users 3 user levels: administrator, operator, and user
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, Adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR
SNR: ≥ 52 dB
Wide Dynamic Range (WDR): 130 dB
Privacy Mask: 4 programmable polygon privacy masks

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone: -U: Yes
Audio: -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Data Sheet: Download

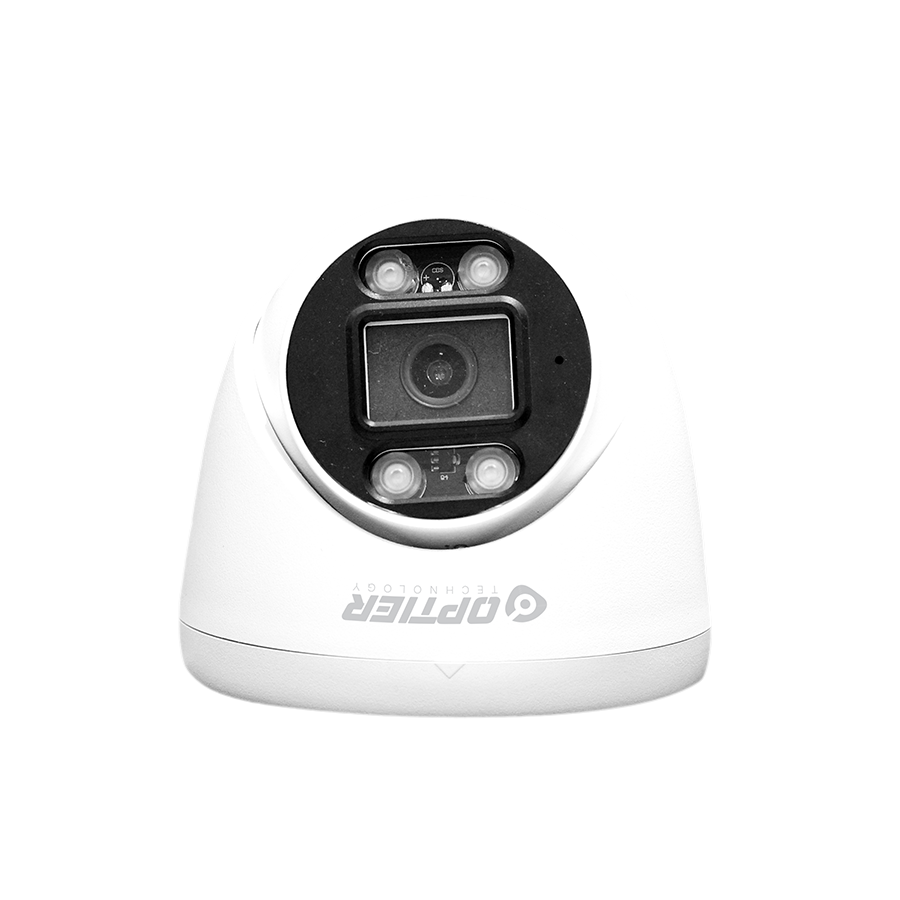

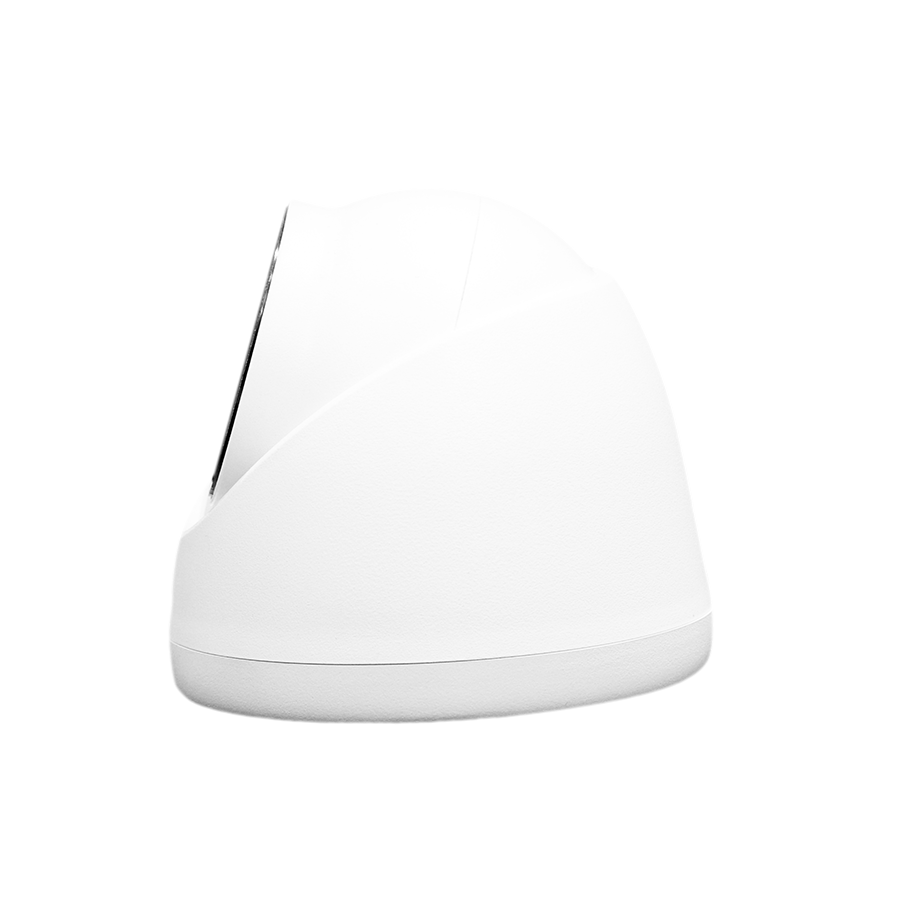

4K Smart Hybrid Network Dome Camera-8MD2830D2
