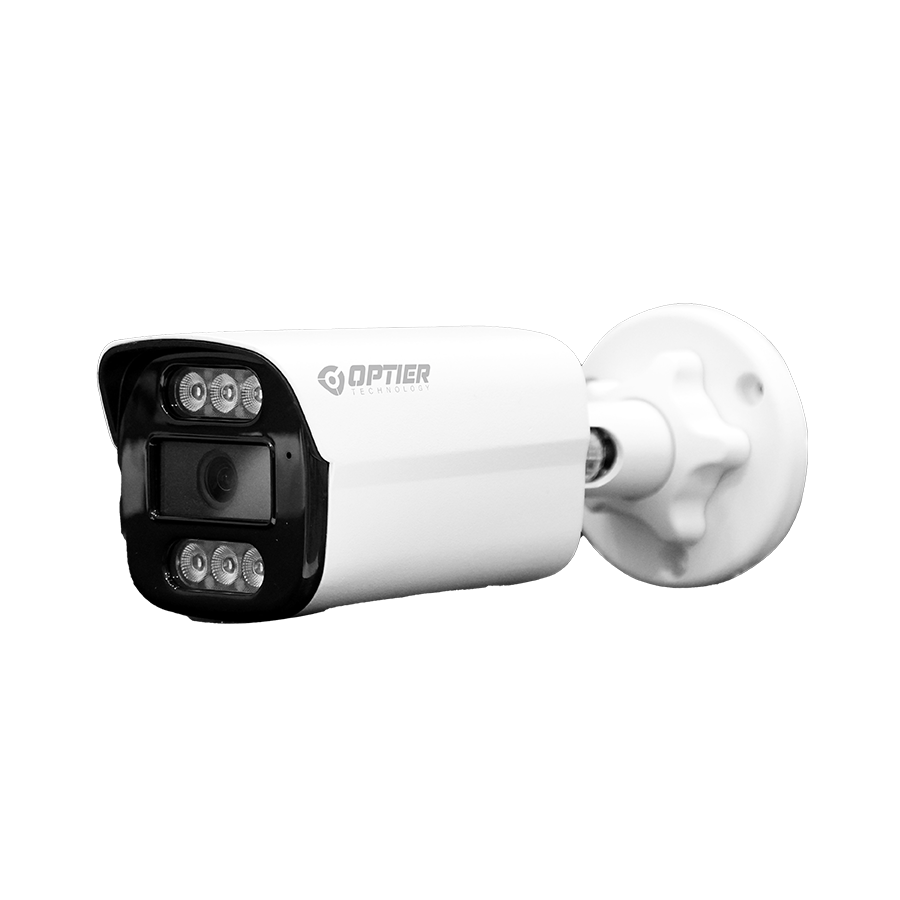

4 MP Powered By Dark Defender Fixed Mini Bullet Network Camera

• 1/1.8″ Progressive Scan Megapixel CMOS
• Resolution- 2560*1440, 4 Megapixels
• 3.6mm lens
• Two way Audio
• True Day & Night (IR Cut Removable)
• Warm light 20-30m
• ONVIF Protocol
• DWDR, 3D Noise Reduction
• Support WEB, VMS, P2P APP connection
• Motion Detection and Privacy Masking
• IP66
• DC12V, PoE

• Power Supply: DC12V / POE
• Protection: IP66
• Size: 109(D)*90.78(H)mm
• Working Temperature: -20°C ~ 50°C
• Working Humidity: 0-90%

• Motion Detection: Support day arming/night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
  Support full screen/area detection
  Linkage setting support: upload mail/voice broadcast alarm/alarm light
• Obstruction Alarm: Support day arming/night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
  Support one detection area
  Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm
• Privacy mask: Support Four areas setting

• Network Port: RJ45 10M/100M network self-adjustable
• Audio: Two way communication
• TF Card slot: Support, 512G in max

• Sensor: 1/1.8″ Megapixel CMOS sensor Ultra low light full colour
• Lens: 3.6mm
• IR Distance: 20-30m(4x IR Array leds)
• WDR: WDR 140dB (off/low/middle/high)
• IR Led Control: Auto/Manual/Off
• DNR: Off/Low/Middle/High/Higher
• Defog: Off/Low/Middle/High
• Mirror: Off/ Horizontal Mirror/Vertical Mirror/180 degree flip
• Image Setting: Brightness, Contrast, Sharpness, Saturation, Chroma

• Video Encode Standard: Smart H.265/H.265/H.264
• Encoding Feature: Main stream: 4MP(2560*1440), 3MP(2304*1296), 2MP(1920*1080) 25fps Sub stream: D1(720*576), VGA(640*480), Q720P(640*360), CIF(352*288)
• Video Code Rate: Fixed code rate, variable code rate (Main stream code:160Kbps-4000kbps)
• Video Type: Composited stream / video stream
• Audio Standard: G.711u / G.711A 64Kbps

• Protocol: TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP
• Connection Protocol: ONVIF, SLINK, HIK, TST
• Security Mode: Authorized user name and password, HTTPS with password, AES connecting with password, RTSP verification
• Motion Detection: Setup detection area, multi-level sensitivity available to setup
• Obstruction Alarm: Support 1 area setting
• Privacy Mask: Support 4 area privacy mask
• Schedule Linkage: Upload email/FTP upload picture, Arming time support day arming/night arming/cutsomized arming
• Equipment Anomaly Inspection: Support network disconnection alarm, IP conflict alarm, illegal access alarm
• Character Overlay(OSD): Support time OSD/Title OSD, multi-line OSD (two lines), Main stream font support 12-60pt, sub stream font support 12-36pt

• Area Intrusion: Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
  Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points)
  Support video stream overlay detection frame
  Support specified target type detection: human, vehicle (non-motor vehicle also can be detected)
  Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm
• Line-crossing Detection: Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
  Support one detection line, supports detection directions: A->B
  Support video stream overlay detection frame
  Support specified target type detection: human, motor vehicle (non-motor vehicle also can be detected)
  Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm
• Wandering/Loitering: Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
  Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points)
  Support video stream overlay detection frame
  Support wandering time setting(10~3600S)
  Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm
• Absent Alarm: Support day arming / night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
  Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points)
  Support video stream overlay detection frame
  Support absent time setting(10-3600S)
  Support at least 1-3 people on duty
  Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm
• Vehicle Illegal Parking: Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
  Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points)
  Support video stream overlay detection frame
  Support illegal parking time setting(10-3600S)
  Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm
• Vehicle Retrograding: Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day
  Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 4 points)
  Support video stream overlay detection frame
  Supports four detection directions, detection line support B->A direction
  Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm

Data Sheet: Download
